8ft F96T12 Retrofit Kit

Manufactured from US Steel and Assembled in USA




Purchasing Options:

Reduce-A-Watt™ Lighting Retrofit Kit

Convert F96T12 Fixtures to 2 F32T8 Vi-Tek 93® Plus Lamps

Choose Reflector

$91.99 — 8ft Retrofit with Enchanced Aluminum Reflectors
$86.99 — 8ft Retrofit with White Reflectors

Included Lamps

32 Watt T8 Vi-Tek 93® Plus

Choose Qty

Review

No items selected.

For energy audits, layout questions:
please email us or call 1-800-637-3853.

Prewired Kit

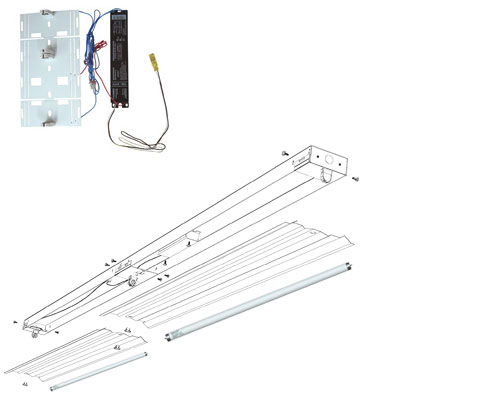

The sockets are prewired to the ballast. Snap the socket bars apart and attach to your 8 foot fixture channel as shown below.

Universal Voltage 120-277 Volt Ballast

The high lumen ballast has a -20º F start, a NEMA ballast disconnect and easily installs with self-tapping screws.

One Piece Center Bracket

The one piece center bracket simplifies and speeds up installation.

Warranty

The ballast is warrantied for 5 years and the lamps are warrantied for 3 years.

Replacement Socket-Bars

The replacement socket-bars fold around either a 4.25" or 5" channel and attach with self-tapping screws.

Choice of 2 Reflectors

The enhanced aluminum reflector has a 95% reflective finish and the white enamel reflectory has a 92% reflective finish. Both reflectors are CNC formed from .020" aluminum and have 13 mirrored angles for unsurpassed lamp imaging. The reflector produces even lighting patterns to eliminate shadows and hot spots.

F96T12 Retrofit Kit
