8ft F96T12 HO Fixture Retrofit
Prewired Kit

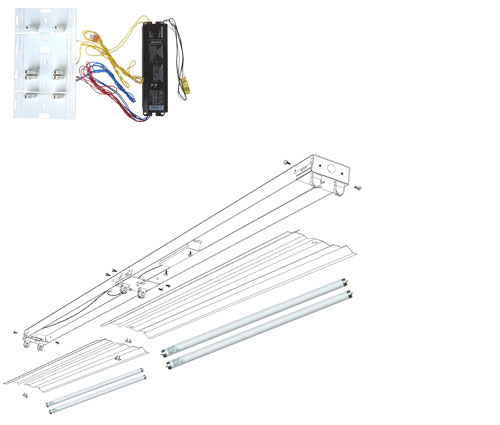

The sockets are prewired to the ballast. Snap the socket bars apart and attach to your 8 foot fixture channel as shown below.
Universal Voltage 120-277 Volt Ballast
The high lumen ballast has a -20º F start, a NEMA ballast disconnect and easily installs with self-tapping screws.
One Piece Center Bracket
The one piece center bracket simplifies and speeds up installation.
Warranty
The ballast is warrantied for 5 years and the lamps are warrantied for 3 years.
Replacement Socket-Bars
The replacement socket-bars fold around either a 4.25" or 5" channel and attach with self-tapping screws.
Choice of 2 Reflectors
The enhanced aluminum reflector has a 95% reflective finish and the white enamel reflectory has a 92% reflective finish. Both reflectors are CNC formed from .020" aluminum and have 13 mirrored angles for unsurpassed lamp imaging. The reflector produces even lighting patterns to eliminate shadows and hot spots.
Manufactured from US Steel and Assembled in USA
| Replace | Watts | Retrofit | Savings |
|---|---|---|---|
| 2 F96T12 HO | 238 | 144 | 94 Watts |
| 2 F96T12 HOES | 202 | 144 | 58 Watts |
