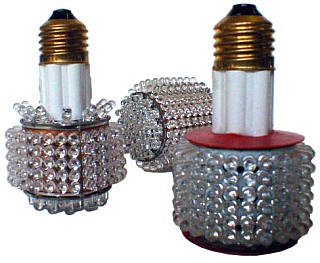

240 LED Scepter Retrofit Kit

LED Scepter Retrofit Kit
Retrofit Includes
Circuit Board with LED Matrix
Electronic Circuitry
Medium Base Screw-Base Adapter

Color Combination
Red Blue
White Blue Green
Green Portland Orange
Yellow
Specification
Height 4.75"
Diameter 2.375"
Operating Temp. -40oC to 74oC
Watts 8 Watts
Volts 120 VAC

Red 100: The red SCEPTER uses LED's that conform to Red, 630nm. The unit uses 20 ½ 30° to be 5500 mcd (typically) LED's for a luminosity of approximately 1320 candelas.

Yellow 100: The yellow SCEPTER uses LED's that conform to Yellow, 590nm. The unit uses 20 ½ 30° to be 5000 mcd (typically) LED's for a luminosity of approximately 1200 candelas.

Red: The red SCEPTER uses LED's that conform to Red, 630nm. The unit uses 20 ½ 30° to be 3500 mcd (typically) LED's for a luminosity of approximately 840 candelas.

Yellow: The yellow SCEPTER uses LED's that conform to Yellow 592nm. The unit uses 20 ½ 30° to be 3500 mcd (typically) LED's for a luminosity of approximately 840 candelas.

White: The white SCEPTER uses LED's that shall be rated at 20 ½ 30° to be 5800 mcd (typically) at 20ma.

Portland-Orange: The Portland-Orange SCEPTER uses LED's that conform to Portland-Orange, 605-610nm.

Blue: The blue SCEPTER uses LED's that conform to Blue, 490-510nm.

Blue-Green: The Blue-Green SCEPTER uses LED's that conform to Blue-Green 510-515nm.

Green: The green SCEPTER uses LED's that conform to Green, 520-545nm.

Purchasing Options:

  1. Call 1-800-637-3853
  2. Send us an Email
