Autobody

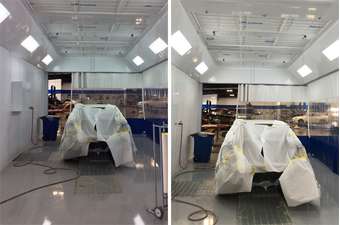

Before and after pictures of autobody lighting upgrade

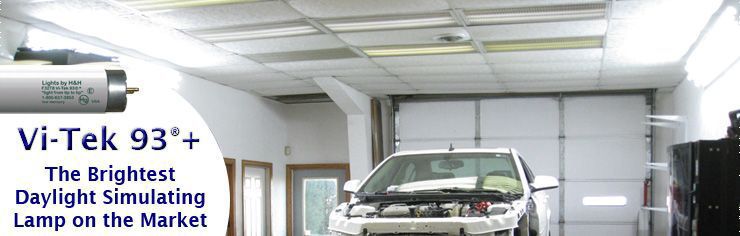

Lighting For Autobody Shops and Paint Spray Booths

The right light is as important to a quality automobile paint job as is the right type of paint, or the proper application technique. If the light is wrong, the color will be wrong too.

Natural outdoor light has long been considered the best light for this critical color matching task. At 6700K and with a high CRI of 93, the H&H full spectrum Vi-Tek 93 Plus effectively simulates that light. That?s why automobile manufacturers and autobody shops choose Vi-Tek 93 Plus for use in their spray booths and paint mixing areas.

Replacing standard fluorescent tubes with full spectrum, high color rendering lamps is the single most important improvement you can make to your spray painting operation. Though fairly inexpensive, the benefits are many. They include:

  • Better color matches
  • Less re-mixing
  • Less waste
  • Fewer do-overs
  • More satisfied customers
  • Greater profits

Because a perfect color match everytime is critical to your business, be sure to use H&H Vi-Tek 93 Plus in your spray booths and paint mixing areas.

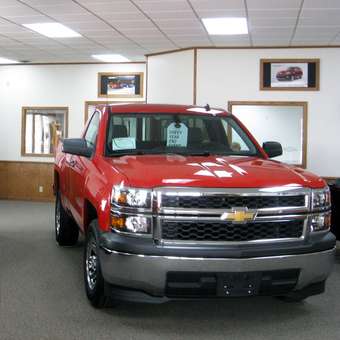

Autobody paint booth Display floor truck

Lighting Upgrade Guide





4ft T8 Upgrades

4ft T8

1" Diameter

If you are looking at your existing lighting, and your lamp etch reads F32T8 735 or 835 or F32T8 741 or 841, use HH9360 (LED) or HH9312 (Fluorescent) to provide the highest quality efficient lighting.

LED

15W T8 Vi-Tek 93® Plus LED

HH9360
50,000 Hours
7 Year Warranty

Fluorescent

F32T8 Vi-Tek 93® Plus

HH9312
50,000 Hours
5 Year Warranty

8ft T12 Upgrades

8ft T12

1.5" Diameter

If your lamp reads F96T12 single pin, use HH9313 in place for high quality lighting or HH3001, HH3108 or HH3102 for more efficient, brighter lighting.

Fluorescent

F96T12 Vi-Tek 93® Plus

HH9313
40,000 Hours
40 Month Warranty

T8 Retrofit

8ft T12 retrofit kit

HH3001 - Reduce-A-Watt™
Over 50% Energy Savings
5 Year Warranty

8ft 2 Lamp T8 Fixture

4ft T8 2 lamp fixture

HH3108 - Watt-Hawk™
Over 50% Energy Savings
5 Year Warranty

8ft 6 Lamp T8 Fixture

4ft T8 6 lamp fixture

HH3102 - Watt-Hawk™
5 Year Warranty

8ft T12 HO Upgrades

8ft T12 HO

1.5" Diameter

If your lamp reads F96T12/HO, use HH9318 in place for high quality lighting or HH3003, HH3109 or HH3102 for more efficient, brighter lighting.

Fluorescent

F96T12 Vi-Tek 93® Plus

HH9318
24,000 Hours
2 Year Warranty

T8 Retrofit

8ft T12 HO retrofit kit

HH3003 - Reduce-A-Watt™
35% Energy Savings
5 Year Warranty

8ft 4 Lamp T8 Fixture

4ft T8 4 lamp fixture

HH3109 - Watt-Hawk™
35% Energy Savings
5 Year Warranty

8ft 6 Lamp T8 Fixture

4ft T8 6 lamp fixture

HH3102 - Watt-Hawk™
5 Year Warranty
