7 Watts
550 Lumens
2700K
(Soft White)
90 CRI
Emits no UV light
Damp Locations
Dimmable
(Down to 10%)
120° Wide Flood
Operating Temp
-4°F to 104°F
Medium Base
120V AC
4 Year Warranty
Product Description

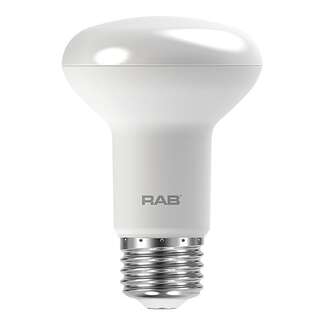

RAB 7 watt 2700K 90 CRI dimmable R20 LED with a medium base.
Product Features
Wide Flood Light Replacement
Energy efficient replacement for incandescent and halogen reflector lamps.
Smooth Diffused Light
Frosted lens produces smooth diffuse light.
Dimmable
Dimmable down to 10%. Compatible with most common dimmer models. (Check Compatibility List).
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
90 CRI
Produces rich and vibrant colors.
Specifications
| Product Type | Reflector |
| Lamp Shape | R20 |
| Lamp Base | Medium (E26) |
| Housing Material | Plastic |
| Finish | White |
| Lens Finish | Frosted |
| Equivalent | 50W Incandescent |
| Watts | 7W |
| Lumens | 550 Lumens |
| Efficacy | 78.6 lm/W |
| Color Temp |
2700K (Soft White) |
| Color Accuracy | 90 CRI |
| CRI R9 | 50 |
| Beam Angle | 120° |
| Beam Type | WFL - Wide Flood |
| Length | 3-11/16" |
| Diameter | 2-1/2" |
| Weight | 0.1 lbs |
| Input Voltage | 120V AC |
| Operating Frequency | 60 Hz |
| Power Factor | >0.9 |
| Flicker | <30% |
| Operating Temperature |
-4 to 104°F -20 to 40°C |
| L70 Lifespan |
25,000 Hours LED lifespan based on IES LM-70 results |
| Emits No UV Light | Yes |
| Dimmable | Yes (Down to 10%) |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| Energy Star Approved |
Yes Energy Star ID: 2328369 |
| UL Listed | Yes |
| FCC Compliant | Yes (Part 15) |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| California Title 20 | Yes, Title 20 Tier 2 |
| California Title 24 | Yes, Complies with Title 24 Appendix JA8 |
| Warranty | 4 Year |
| UPC | 019813749990 |

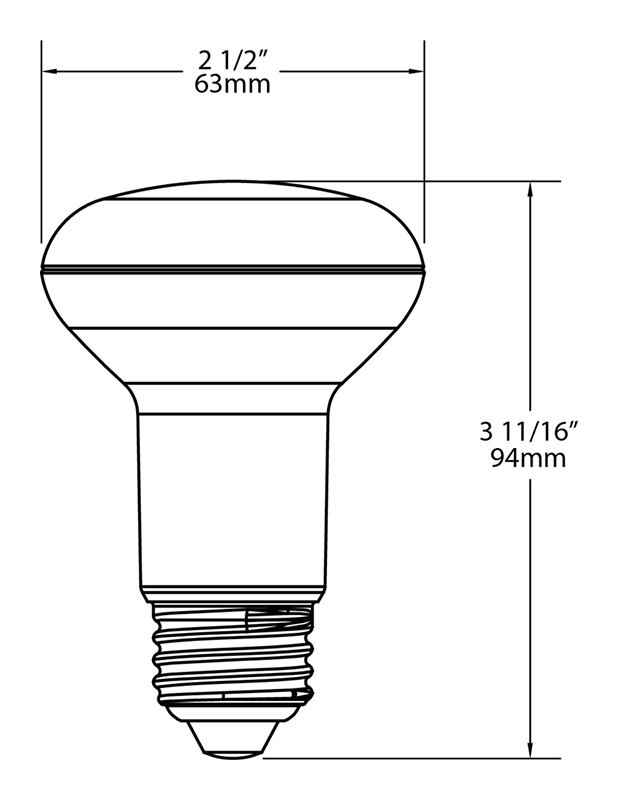

Dimensions
Spec Sheet:
R20-7-927-DIM Spec Sheet
