American Made! The Ultimate Garage Light.

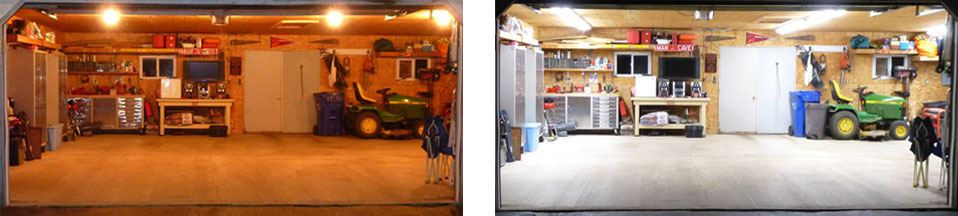

Before and after pictures of garage lighting upgrade



6 lamp, T8, 8-foot, high-efficiency garage fixture

The Ultimate Garage Fixture

Designed for ceilings up to 15 feet high

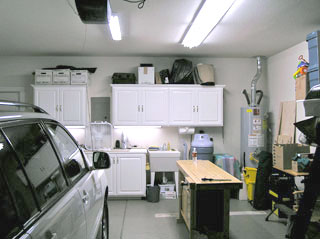

6 lamp garage fixture side view

Evenly Spreads Light Throughout the Garage

The 6 mirrored angles on the specially designed reflectors spread the light evenly eliminating shadows and hot spots.

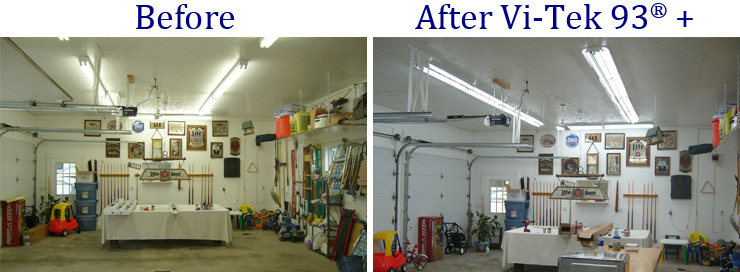

HH9350 Vi-Tek 93 Plus daylight lamp

Fixture Includes Vi-Tek 93 Plus Lamps

Bring natural sunlight inside your garage to help you see better.
6 lamp garage fixture side view

5 Year Warranty

5 Year No-Nonsense Free Replacement Warranty
6 lamp garage fixture side view

USA Built

The Ultimate Garage Fixture is proudly built in the USA

We have over 50 years of garage lighting experience

Purchasing Options:

Fixture Qty

Add A Cord

No Cord
C1 Plug8C1 8' Straight Blade Plug
Add 23.99 per fixture
C2 Plug8C2 8' L5-15 Plug
Add 29.99 per fixture
C4 Plug8C4 8' L7-15 Plug
Add 29.99 per fixture
C6 Plug8C6 8' L6-20 Plug
Add 35.99 per fixture


No items selected.

For energy audits, layouts, custom fixtures or questions:
please email us or call 1-800-637-3853.

Quick Connect Power Cord Receptacle

7 different power cords available for use with the quick connect power cord receptacle.

Universal Voltage 120-277 Volt Ballast

Less noise than metal halide and no waiting for cool down and restrike. The high lumen ballast has a -20º F start and a NEMA ballast disconnect. 480 Volt is available.


Fixture is designed for gripple aircraft cable installations.


The fixture and ballasts are warrantied for 5 years and the lamps are warrantied for 3 years (5 years with HH9350).

Quality Cam-Lock Lampholders

The lampholders mount securely in the fixture body and prevent the lamps from slipping out.

Solid 20ga (.032") Steel Body

The solid four bend body provides added rigidity. The socket bars and endplates securely snap into place. The cold rolled steel body is painted with a smooth, glossy, highly reflective white enamel paint and has sufficent knockouts for mounting and electrical supply.

Tab Mount, Tool Free Reflector Attachement

The reflectors are attached to the fixture body with a tab lock system. No tools or additional fasteners are required for reflector installation and removal.

95% Specular Reflector

The CNC formed .020" specular aluminum reflector has 6 mirrored angles per lamp for unsurpassed lamp imaging. The reflector produces even lighting patterns to eliminate shadows and hot spots.

Dimensions Ultimate Garage Fixture Dimensions
