120-277V AC
Not Dimmable
Operating Temp
-20°F to 158°F
5 Year Warranty
Product Description

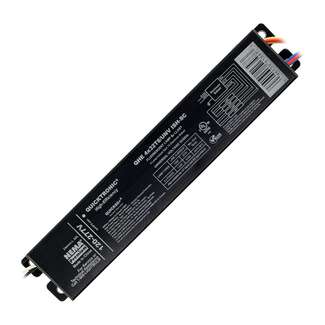

Sylvania 4 lamp T8 high ballast factor universal voltage (120-277V AC) electronic fluorescent ballast.
Product Features
- High Efficiency Systems over 90% efficient
- 194°F (90°C) maximum case temperature (3 year warranty)
- 158°F (70°C) maximum case temperature (5 year warranty)
- Lamp Striation Control (LSC)
- Emergency Ballast Compatible
Specifications
| Brand | Sylvania |
| Model Number | 51347 |
| Replaces |
49877 49922 |
| Product Type | Fluorescent Ballast |
| Product Code | QHE4X32T8/UNV ISH-SC |
| Ballast Type | Electronic |
| Starting Method | Instant Start |
| Ballast Factor | 1.16 - 1.20 |
| Circuit Type | Parallel |
| Lamp Frequency | >42 kHz |
| Lamp CCF | Less than 1.7 |
| Lamps Operated | 4 |
| Length | 9.5" |
| Width | 1.68" |
| Height | 1.18" |
| Weight | 1.6 lbs |
|
Remote Mounting Max Wire Length (From Ballast Case to Lampholder) |
20 Feet - Full Wattage T8s 10 Feet - Energy Saving T8s 4 Feet - 25W Energy Saving T8s |
| Voltage | 120-277V AC |
| Line Voltage | 108-305V AC |
| Operating Frequency | 50/60 Hz |
| Power Factor | >98% |
| THD | <10% |
| Minimum Starting Temperature |
-20°F (-29°C) for T8 lamps 60°F (16°C) for Energy Saving T8 lamps |
| Operating Temperature | -20 to 158°F -29 to 70°C |
| Emergency Ballast Compatible | Yes |
| Dimmable | No |
| Sound Rating | A |
| UL Listed | Yes |
| FCC Compliant | Yes |
| CSA Certified | Yes |
| RoHS Compliant | Yes |
| Warranty | 5 Year Limited |
| UPC | 046135513473 |
Spec Sheet:
QHE4X32T8UNVISH Spec Sheet
