120-277V AC
Damp Locations
Not Dimmable
Operating Temp
0°F to 105°F
Product Description

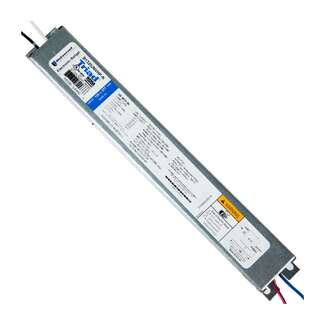

Universal Lighting Technologies 1 lamp T8 normal ballast factor universal voltage (120-277V AC) electronic ballast.
Works With
| Type | # Lamps |
|---|---|
| F40T8 | 1 |
| F32T8 | 1 |
| F32T8ES (30W) | 1 |
| F32T8ES (25W) | 1 |
| F28T8 | 1 |
| F25T8 | 1 |
| F17T8 | 1 |
| And equivalent U-shaped lamps | |
Specifications
| Brand | Universal Lighting Technologies |
| Model Number | B132IUNVHP-N |
| Product Type | Fluorescent Ballast |
| Ballast Type | Electronic |
| Starting Method | Instant Start |
| Ballast Factor | .86 to .90 |
| Circuit Type | Parallel |
| Lamps Operated | 1 |
| Length | 9.5" |
| Width | 1.31" |
| Height | 1" |
| Weight | 0.75 lbs |
| Wire Lengths |
Black: 25" White: 25" Red: 48" Blue: 31" |
| Voltage | 120-277V AC |
| Line Voltage | 108-305v AC |
| Operating Frequency | 50/60 Hz |
| Power Factor | >98% |
| THD | <10% |
| Min Starting Temperature |
0°F (-18°C) for T8 lamps 60°F (16°C) for ES & 28W lamps 32°F (0°C) for F40T8 lamps |
| Max Operating Temperature | 105°F (40°C) |
| Dimmable | No |
| Damp Location Rated | Yes |
| Anti-Striation Circuitry | Yes |
| Sound Rating | A |
| cULus Listed | Yes |
| FCC Compliant | Yes |
| Case Quantity | 10 |
| UPC | 768386549666 |
Spec Sheet:
B132IUNVHP Spec Sheet
