Not Dimmable
Minimum Temp
0°F
Max Case Temp
165°F
Class A
Sound Rating
120-277V AC
Product Description

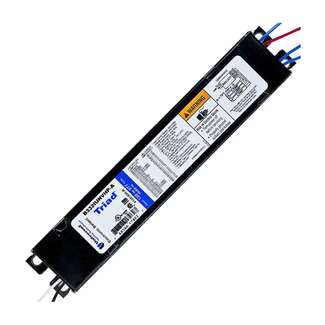

Universal Lighting 2 or 3 lamp T8/T12 F16/F17/F24/F25/F28/F31/F32/F40 normal ballast factor universal voltage (120-277V AC) non-dimmable instant start electronic fluorescent ballast.
Works With
| Type | # Lamps |
|---|---|
| F32T8 | 2 or 3 |
| F32T8/U6 | 2 or 3 |
| F32T8/ES | 2 or 3 |
| F28T8 | 2 or 3 |
| F25T8 | 3 |
| F24T8 | 3 |
| F25T12 | 3 |
| F17T8 | 3 |
| F16T8 | 3 |
| F31T8/U1 | 2 |
| F40T8 | 2 |
Specifications
| Brand Name | Universal Lighting |
| Product Type | Fluorescent Ballast |
| Ballast Type | Electronic |
| Starting Method | IS - Instant Start |
| Ballast Factor |
0.88 NBF - Normal Ballast Factor |
| Circuit Type | Parallel |
| Lamp CCF | < 1.7 |
| Lamps Operated | 2 or 3 |
| Lamp Sizes Operated | T8/T12 |
| Length | 9.5" |
| Width | 1.7" |
| Height | 1.18" |
|
Remote Mounting Max Wire Length (From Ballast Case to Lampholder) |
18 ft. max. lead length, 18 AWG |
| Weight | 1.7 lbs |
| Voltage | 120-277V AC |
| Operating Frequency | 50/60 |
| Power Factor | High |
| Maximum Case Temperature | 165°F (74°C) |
| Minimum Starting Temperature | 0°F (-18°C) |
| Dimmable | No |
| Sound Rating | Class A |
| Thermal Protection | Yes |
| cULus Listed | Yes |
| UL Listed | Yes |
| CSA Certified | Yes |
| Made In | Mexico |
| UPC | 768386555605 |
Spec Sheet:
B332IUNVHP Spec Sheet
