6" - IC - Air-Tight No Bracket Remodel Housing Line Voltage Nora Lighting
Free Shipping on Orders Over $1,500 on Most Items

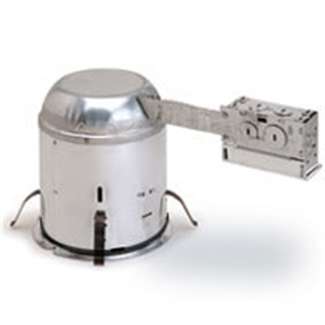

6" IC Air-Tight Line Voltage Remodel Housing, No Bracket

SKU:
NHRIC-17QNBAT
Buy Price Total
1 Item $ 18.99 18.99
5 Items $ 17.99 89.95
10 Items $ 17.08 170.80
25 Items $ 15.99 399.75
50 Items $ 14.99 749.50
100 Items $ 13.99 1,399.00
Quantity:
Nora Lighting’s recessed IC remodel housings with free hanging sockets are high quality, light weight airtight units ideal for use in insulated ceilings. Rated for direct contact with insulation and combustive material, housings install into existing drywall or wood ceilings with no above access and accept a wide variety of high quality, attractive finishing trims with keyhole bracket or install direct to PAR lamps used with adjustable gimbal rings.



Product Description

6" IC Air-Tight Line Voltage Remodel Housing, No Bracket

Nora Lighting’s recessed IC remodel housings with free hanging sockets are high quality, light weight airtight units ideal for use in insulated ceilings. Rated for direct contact with insulation and combustive material, housings install into existing drywall or wood ceilings with no above access and accept a wide variety of high quality, attractive finishing trims with keyhole bracket or install direct to PAR lamps used with adjustable gimbal rings.

Specifications

Minimum Clearances: “IC” Housings are direct contact rated; no minimum clearance is required

Ceiling Thickness: Housing adjusts from 3/8" – 1-3/8" to accommodate various ceiling thicknesses.

Lamp Position: Lamp is automatically positioned 90 degrees perpendicular to floor when socket is connected to trim and trim is inserted completely into the housing

Installation: High tension tempered steel springs secure remodel housings evenly to ceiling; hole cutout template provided for convenience.

Junction Box: Junction box is listed for through branch circuit wiring and contains five 1/2", two 3/4" knockouts and four Romex® pryouts with strain relief

Electrical: Quick Connector provided

Maximum Wattage: 100W (actual wattage varies with trim)

Dimensions:
Length: 13-3/4"
Width: 6-3/4"
Depth: 7-1/2"
Ceiling Opening: 6-3/8"

Spec Sheet: NHRIC-17QAT_spec.pdf
