78 Watt 5000K 100-277 Volt Wet Rated Outdoor Area Light LED Fixture from RAB Lighting

Product Description

RAB 78 watt 5000K 100-277 volt wet rated LED outdoor area light fixture with a white finish



Product Features

Type III Light Distribution

The Type III distribution is ideal for roadway, general parking, and other area lighting applications where a larger pool of lighting is required.
It is intended to be located near the side of the area, allowing the light to project outward and fill the area.

High Output LEDs

Six multi-chip high-output long-life LEDs.

Durable Aluminum Housing

Die-cast aluminum housing, lens frame and mounting arm.

IP66 Rating

Ingress Protection rating of IP66 for dust and water.

Wet Location Rated

Suitable for wet locations as a downlight.

Environmentally Friendly

Mercury and UV free.
RoHS-compliant components.

Consistent Fixture-to-Fixture LED Color

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: P000017AJ.

IESNA LM-79 & LM-80 Testing

This luminaire has been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.

Thermal Management

Superior heat sinking with die cast aluminum housing and external fins.



Specifications

Brand Name	RAB
Fixture Type	Outdoor Area Light
Technology	LED
Material	Die-Cast Aluminum Housing, Lens Frame and Mounting Arm
Finish	White
Reflector	Specular vacuum-metallized polycarbonate
Light Distribution	Type III
BUG Rating	B1 U0 G2
Gaskets	High-temperature silicone gaskets
Equivalent	400W MH (Metal-Halide)
Watts	78W
Lumens	9,263 Lumens
Efficacy	120.6 Lm/W
Color Temp	5000K (Cool White)
Color Accuracy	71 CRI
Length	25.424"
Width	15"
Height	4.5"
Back Plate Length	6.631"
Back Plate Width	6.631"
Back Plate Height	1.875"
Weight	32.5 lbs
Input Voltage	100-277V AC
Operating Frequency	50/60 Hz
Driver	Type: Constant Current, Class 2, 2000mA, 1.1A 120V: 0.66A 208V: 0.41A 240V: 0.35A 277V: 0.30A
Power Factor	99%
THD	120V: 5.3% 277V: 13.3%
Surge Protection	6 kV
Operating Temperature	-40 to 104°F -40 to 40°C
Lifespan	100,000 Hours LED lifespan based on IESlm-80 results and TM-21 calculations
Emits No UV Light	Yes
Dimmable	No
Wet Location Rated	Yes
For Use Outdoors	Yes
DLC Listed	Yes DLC Product Code: P000017AJ
IP66 Rating	Yes
UL Listed	Yes Suitable for wet locations as a downlight
RoHS Compliant	Yes
Mercury Free	Yes

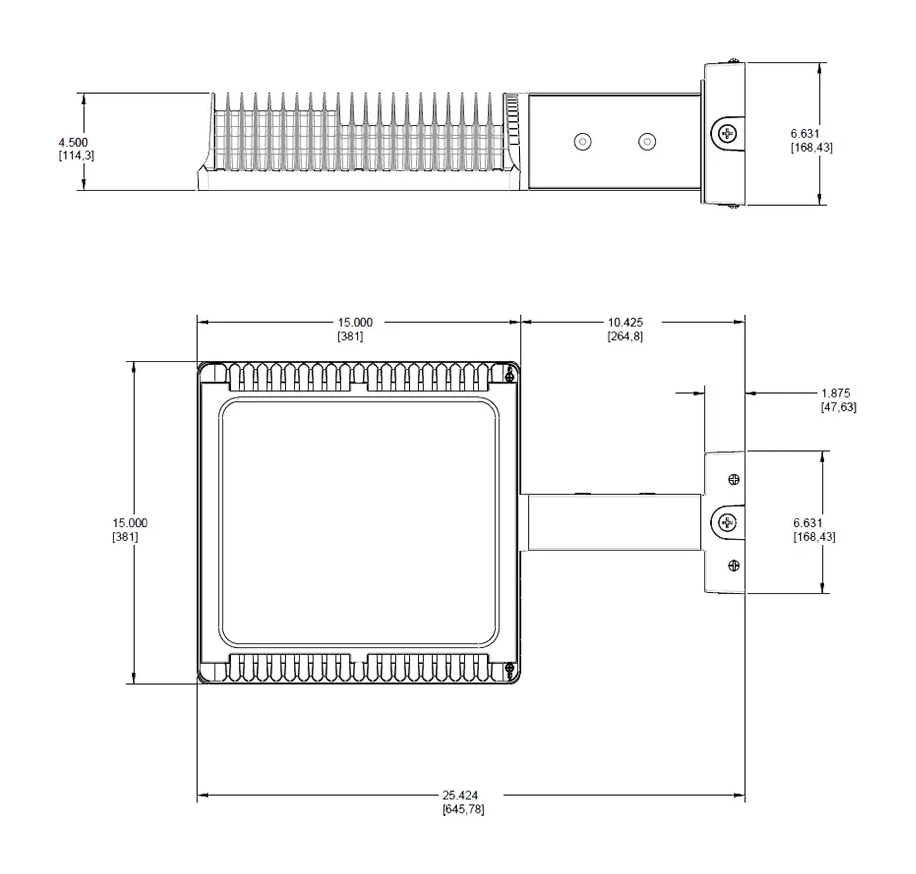

Dimensions

Spec Sheet: WPLED3T78W Spec Sheet

Instructions: Installation Instructions
