26 Watt 5000K LED Barn Light Fixture with Arm

Product Description

Rab 26 watt 5000K LED area light fixture with arm and a gray finish.



Product Features

Type V Light Distribution

The Type V distribution produces light in a wide and uniform 360° pattern that is perfect for large outdoor areas such as parking lots, corporate parks and retail settings.

Photocell

Integrated dusk to dawn photocell.

Wet Location Rated

Suitable for wet locations.

Environmentally Friendly

Mercury and UV free. RoHS-compliant components.

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: P417W62F.

IESNA LM-79 & LM-80 Testing

This luminaire has been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.



Specifications

Photocell	Yes (Integrated 120V Compatible)
Housing Material	Precision die-cast aluminum housing and arm
Reflector	High-reflectance white paint
BUG Rating	B1 U2 G1
Effective Projected Area	EPA = 0.3
Gaskets	High-temperature silicone
Lens	High-impact, frosted polycarbonate lens
Mounting	Mounts on pole
Mounting Height	15 ft
Equivalent	150 HPS
Watts	26W
Lumens	3,685 Lumens
Efficacy	122.8 Lm/W
Color Temp	5000K (Cool White)
Color Accuracy	76 CRI
Length	11.6"
Diameter	7"
Height	5.7"
Weight	12 lbs
Input Voltage	120-208V AC
Operating Frequency	50/60 Hz
Driver	Type: Constant Current 120V: 0.5A 208V: 700mA
Power Factor	99.3%
Power Factor	99.5% at 120V 93.6% at 277V
THD	6.8% at 120V 12.4% at 277V
Surge Protection	2kV
Minimum Starting Temperature	-40°F (-40°C)
Lifespan	100,000 Hours (Based on IES LM-80 results and TM-21 calculations)
Emits No UV Light	Yes
Dimmable	No
Wet Location Rated	Yes
DLC Listed	Yes DLC Product Code: P417W62F
UL Listed	Yes Suitable for wet locations
RoHS Compliant	Yes
Mercury Free	Yes
UPC	019813104935

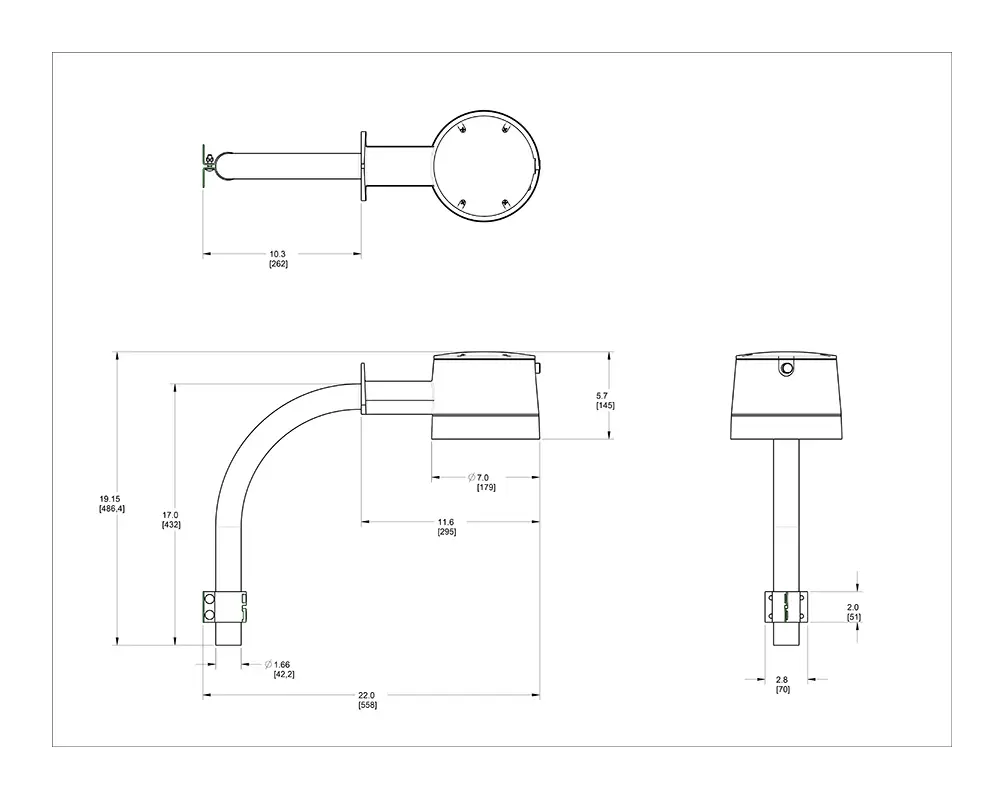

Dimensions

Spec Sheet: YBLED26/ARM Spec Sheet

Instructions: Installation Instructions
