RAB 13W 4000K Black LED Gooseneck w/ Flood Reflector

Product Description

RAB 13 watt 4000K gooseneck style LED light fixture with black finish, flood reflector, and a 24" GOOSE1 arm.



Product Features

Wet Location Rated

Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.

Environmentally Friendly

Mercury and UV free. RoHS-compliant components.

Consistent Fixture-to-Fixture LED Color

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.

Mounting

Heavy-duty mounting arm with "O" ring seal and stainless steel screw.

Swivel Joint

Adjustable 45° swivel joint.

IESNA LM-79 & LM-80 Testing

This luminaire has been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.



Specifications

Housing Material	Precision die-cast aluminum housing, lens frame and mounting plate
Fixture Arm	24" GOOSE1 Arm
Reflector	Flood
Lens	Frosted
Gaskets	High-temperature Silicone
LED	Single multi-chip, 13W high-output, long-life LED
Equivalent	75W Incandescent, 50W Metal Halide or 18W CFL
Watts	13W
Lumens	664 Lumens
Efficacy	43 lm/W
Color Temp	4000K (Neutral White)
Color Accuracy	86 CRI
Weight	12.1 lbs
Input Voltage	100-277V AC
Operating Frequency	50/60 Hz
Driver	Type: Constant Current, Class 2, 100-240VAC 0.3 - 0.15A 120V: 0.3A 208V: 0.3A 240V: 0.3A 277V: 0.15A
Power Factor	97.5%
THD	≤20%
THD	14.8% at 480V
Surge Protection	4kV
Operating Temperature	-40 to 104°F -40 to 40°C
Lifespan	100,000 Hours (Based on IES LM-80 results and TM-21 calculations)
Emits No UV Light	Yes
Dimmable	No
Wet Location Rated	Yes
UL Listed	Yes Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.
RoHS Compliant	Yes
Mercury Free	Yes
Warranty	5 Year
UPC	019813028873

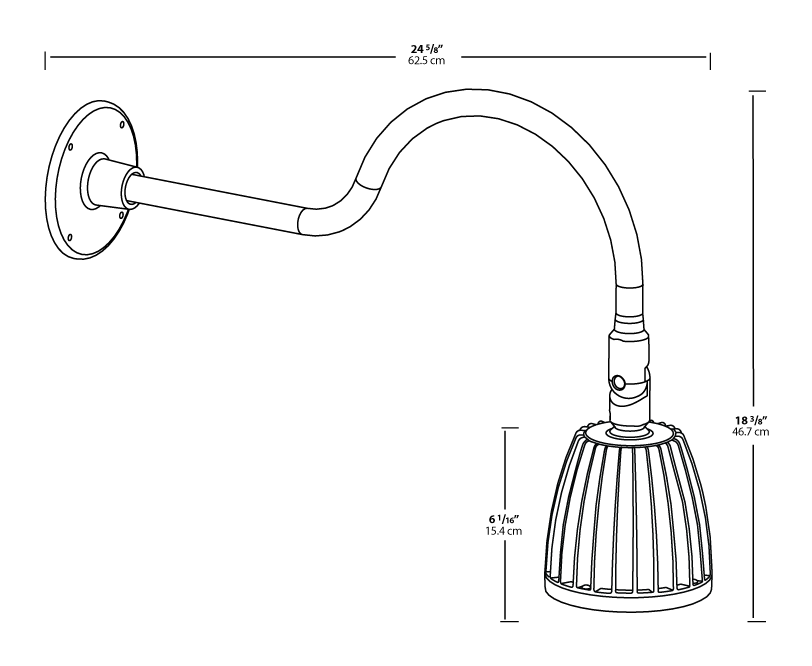

Dimensions

Spec Sheet: GN1LED13NB Spec Sheet

Instructions: Installation Instructions
