RAB 26 Watt 4900K Ceiling Mount LED Vaporproof Fixture

Product Description

RAB 26 watt 4900K ceiling mount vaporproof LED fixture with frosted globe and diecast aluminum guard.



Product Features

Wet Location Rated

UL Listed Suitable for Wet locations as a Downlight.

Environmentally Friendly

Mercury and UV free. RoHS-compliant components.

Consistent Fixture-to-Fixture LED Color

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.

IESNA LM-79 & LM-80 Testing

This luminaire has been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Glass Globe

Thermal shock-resistant frosted glass globe.



Specifications

Construction	Tether connects back housing halves for safety.
Housing Material	Die-cast aluminum housing and driver housing
Finish	Natural shot blasted aluminum
Reflector	High quality hydroformed semi-specular aluminum
BUG Rating	B0 U3 G1
Gaskets	High-temperature Silicone
Guard and Globe	Shot blasted guard with frosted globe
Mounting	Three 1/2" NPS conduit entry points
Watts	26W
Lumens	2,004 Lumens
Efficacy	48.3 lm/W
Color Temp	4900K (Natural Light)
Color Accuracy	65 CRI
Weight	5.1 lbs
Input Voltage	100-277V AC
Operating Frequency	50/60 Hz
Driver	Type: 13W Driver, Constant Current 120V: 0.13A 208V: 0.08A 240V: 0.07A 277V: 0.06A
Surge Protection	4kV
Operating Temperature	-40 to 104°F -40 to 40°C
Lifespan	100,000 Hours (Based on IES LM-80 results and TM-21 calculations)
Emits No UV Light	Yes
Dimmable	No
Wet Location Rated	Yes
UL Listed	Yes UL Listed Suitable for Wet locations as a Downlight
RoHS Compliant	Yes
Mercury Free	Yes
Warranty	5 Year

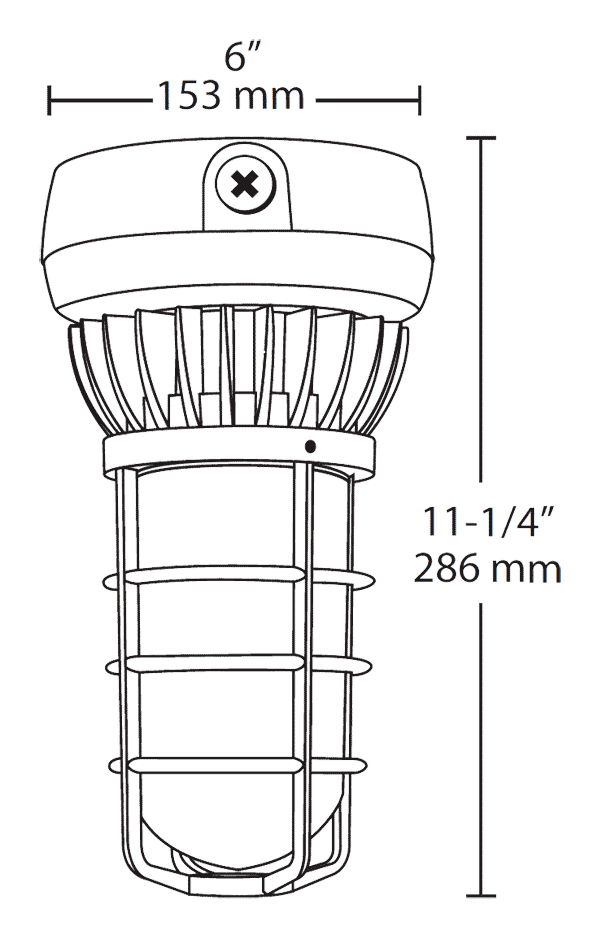

Dimensions

Spec Sheet: VXLED26DG Spec Sheet
