13 Watts
729 Lumens
5000K
(Cool White)
65 CRI
Emits no UV light
Wet Locations
Not Dimmable
Operating Temp
-40°F to 95°F
100-277V AC
120V Swivel
Photocell Included
5 Year Warranty
Product Description
RAB 13 watt 5000K wall mount vaporproof LED fixture with frosted globe, diecast aluminum guard, and photocell.
Product Features
Wet Location Rated
UL Listed Suitable for Wet locations as a Downlight.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Consistent Fixture-to-Fixture LED Color
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
IESNA LM-79 & LM-80 Testing
This luminaire has been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Thermal Management
Die cast aluminum LED housing designed for maximum heat dissipation.
Glass Globe
Thermal shock-resistant frosted glass globe.
Specifications
| Photocell | 120V Swivel Photocell Included |
| Construction | Tether connects back housing halves for safety. |
| Housing Material | Die-cast aluminum housing and driver housing |
| Finish | Natural shot blasted aluminum |
| Reflector | High quality hydroformed semi-specular aluminum |
| BUG Rating | B0 U3 G1 |
| Gaskets | High-temperature Silicone |
| Guard and Globe | Shot blasted guard with frosted globe |
| Mounting | Three 1/2" NPS conduit entry points |
| Recovery Act (ARRA) Complaint | This product complies with the 52.225-21 "Required Use of American Iron, Steel, and Manufactured Goods-- Buy American Act-- Construction Materials (October 2010). |
| Equivalent |
26W CFL 13-23W CFL or 25-60W incandescent |
| Watts | 13W |
| Lumens | 729 Lumens |
| Efficacy | 48 lm/W |
| Color Temp |
5000K (Cool White) |
| Color Accuracy | 65 CRI |
| Weight | 5.8 lbs |
| Input Voltage | 100-277V AC |
| Operating Frequency | 50/60 Hz |
| Driver |
Type:
13W Driver, Constant Current
120V:
0.13A
|
| Surge Protection | 4kV |
| Operating Temperature |
-40 to 95°F -40 to 35°C |
| Lifespan |
100,000 Hours (Based on IES LM-80 results and TM-21 calculations) |
| Emits No UV Light | Yes |
| Dimmable | No |
| Wet Location Rated | Yes |
| UL Listed |
Yes UL Listed Suitable for Wet locations as a Downlight |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| Warranty | 5 Year |
| UPC | 019813194691 |

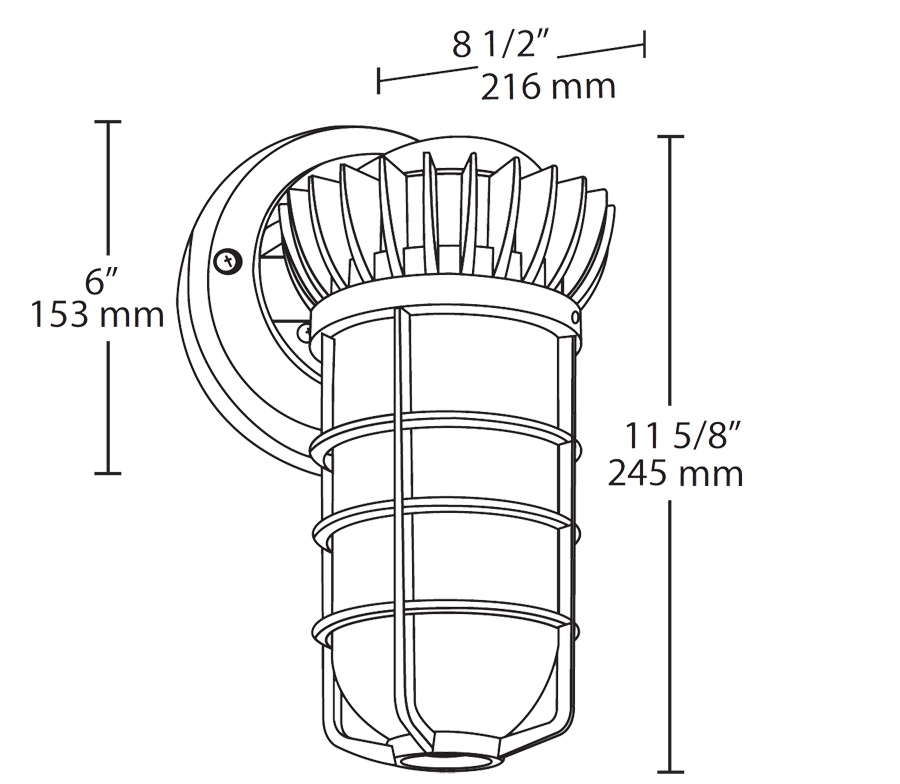

Dimensions
Spec Sheet:
VXBRLED13DG/PCS Spec Sheet
Instructions:
Installation Instructions
