RAB 13 Watt 4000K 120V Swivel Wall Uplight Mount LED Vaporproof Fixture and photocell

Product Description

RAB 13 watt 4000K wall uplight vaporproof LED fixture with frosted globe, diecast aluminum guard, and photocell.



Product Features

Uplighting

Specially designed for mounting as an uplight.

Smooth And Even Light Distribution

Frosted globe emits uniform glow.

Wet Location Rated

Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.

Environmentally Friendly

Mercury and UV free. RoHS-compliant components.

Consistent Fixture-to-Fixture LED Color

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.

IESNA LM-79 & LM-80 Testing

This luminaire has been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Thermal Management

Die cast aluminum LED housing designed for maximum heat dissipation.



Specifications

Photocell	120V Swivel Photocell Included
Construction	Die cast aluminum housing and door. Tether connects back housing halves for safety.
Housing Material	Die-cast aluminum housing and driver housing
Finish	Natural shot blasted aluminum
Reflector	High quality hydroformed semi-specular aluminum
Gaskets	High-temperature Silicone
Guard and Globe	Shot blasted guard with frosted globe
Mounting	Three 1/2" NPS conduit entry points
Equivalent	26W CFL
Watts	13W
Lumens	595 Lumens
Efficacy	39 lm/W
Color Temp	4000K (Neutral White)
Color Accuracy	88 CRI
Weight	5 lbs
Input Voltage	100-277V AC
Operating Frequency	50/60 Hz
Driver	Type: 13W Driver, Constant Current 120V: 0.13A
Surge Protection	4kV
Operating Temperature	-40 to 95°F -40 to 35°C
Lifespan	100,000 Hours (Based on IES LM-80 results and TM-21 calculations)
Emits No UV Light	Yes
Dimmable	No
Wet Location Rated	Yes
UL Listed	Yes Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.
RoHS Compliant	Yes
Mercury Free	Yes
Warranty	5 Year
UPC	019813194738

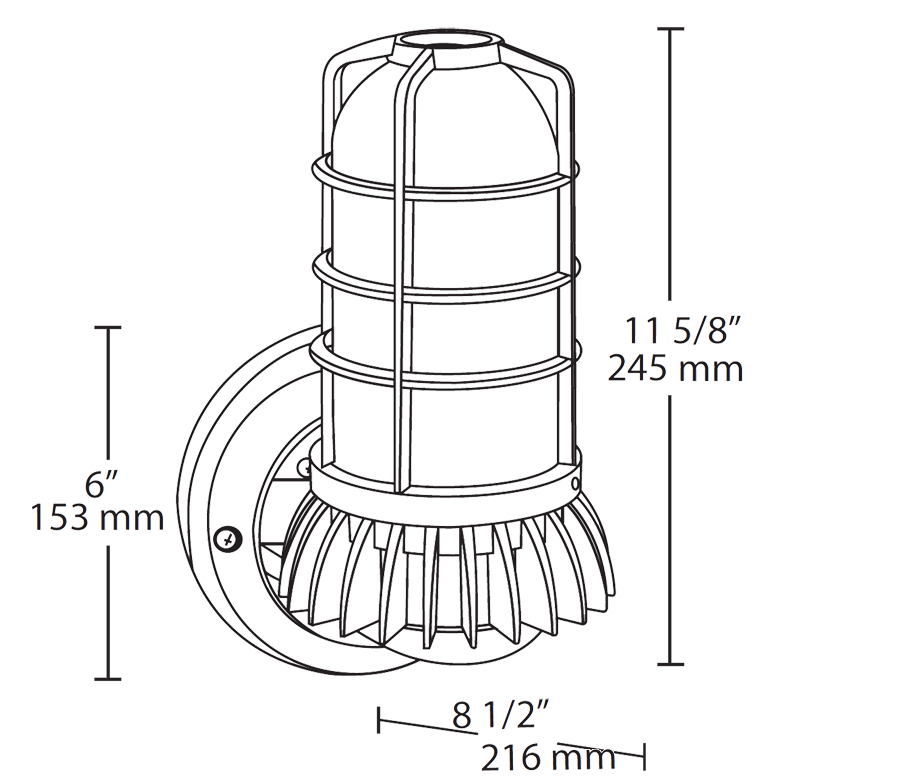

Dimensions

Spec Sheet: VXBRLED13NDG/UP/PCS Spec Sheet

Instructions: Installation Instructions
