4 Watts
433 Lumens
4000K
(Neutral White)
82 CRI
Emits no UV light
4H x 4V
Beam
Wet Locations
Not Dimmable
Operating Temp
-40°F to 104°F
12V AC
5 Year Warranty
Product Description
RAB 4 watt 4000K white LED landscape flood light fixture.
Product Features
Low Voltage Landscape Lighting
Works with existing 12V AC landscape lighting systems.
Wet Location Rated
Suitable for wet locations. Suitable for ground mounting.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Consistent Fixture-to-Fixture LED Color
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
Thermal Management
Optimized using computational fluid dynamics software to ensure long LED and driver lifespan.
Specifications
| Housing Material | Precision die-cast aluminum housing, lens frame and mounting arm |
| NEMA Beam Spread | 4H x 4V |
| Gaskets | High-temperature silicone |
| LED | Multi-chip, high-output, long-life LED |
| Lens | Microprismatic diffuser produces a smooth distribution and low glare |
| Wiring | 30" SPT1 zip cord included. Transformers provided by others. |
| Equivalent | 35W Halogen MR16 |
| Watts | 4W |
| Lumens | 433 Lumens |
| Efficacy | 92 lm/W |
| Color Temp |
4000K (Neutral White) |
| Color Accuracy | 82 CRI |
| Weight | 1.6 lbs |
| Voltage | 12V AC |
| Operating Frequency | 50/60 Hz |
| Driver |
Type:
12VAC Max, Class 2, 0.5A, Constant Current
|
| Operating Temperature |
-40 to 104°F -40 to 40°C |
| Lifespan |
100,000 Hours (Based on IES LM-80 results and TM-21 calculations) |
| Emits No UV Light | Yes |
| Wet Location Rated | Yes |
| UL Listed |
Yes Suitable for wet locations. Suitable for ground mounting. |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| Warranty | 5 Year |
| UPC | 019813104850 |

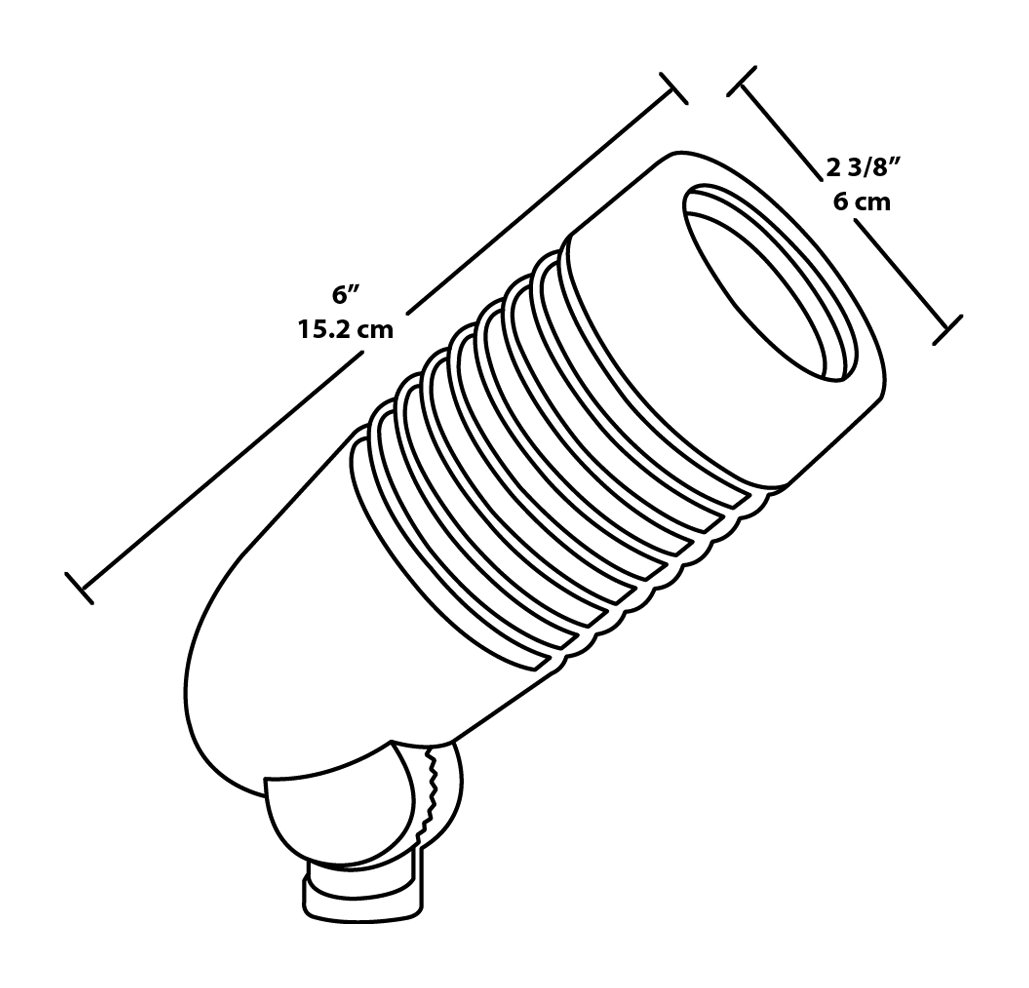

Dimensions
Spec Sheet:
LFLED4NLVW Spec Sheet
Instructions:
Installation Instructions
