Compatible with Magnetic Ballasts
Direct AC Compatible
(Ballast Not Required)
8.5 Watts
960 / 1,020 / 1,050 Lumens
3000K/3500K/4000K
(Cool White)
80 CRI
Emits no UV light
Damp Locations
Not Dimmable
110° Beam
Operating Temp
-4°F to 113°F
5 Year Warranty
Product Description
Rab 8.5 watt dual mode (on ballast or direct wire) selectable color temperature (3000K / 3500K / 4000K) horizontal orientation PLC LED lamp with a 2-pin G24d base.
Product Features
Ballast or Direct AC Compatible (Type A or B)
Type A/B hybrid is both ballast bypass and ballast compatible.
Works in G24d, GX24d, G24q & GX24q Bases
Compatible with 2-pin or 4-pin CFL installations with G24d, GX24d, G24q or GX24q bases.
Rotatable Base
Base rotates to allow you to direct light where needed.
Selectable Color Temperature
Switch on the LED allows you to select a color temperature or 3000K, 3500K, or 4000K.
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
Instant on
Instant-on with no warmup time.
80 CRI
Ideal for general lighting applications.
Specifications
| Product Type | Compact |
| Lamp Shape | PLC |
| Lamp Base | G24d (2-Pin) |
| Installation Type |
Type A: Ballast Compatible with Magnetic Ballasts Type B: Direct AC Compatible (Dual Mode) |
| Installation Orientation | Horizontal |
| Housing Material | Polycarbonate |
| Finish | White |
| Lens Finish | Frosted |
| Equivalent | 26W/32W G24d & G24q CFL |
| Watts | 8.5W |
| Lumens | 960 / 1,020 / 1,050 Lumens |
| Efficacy | 113/120/123 lm/W |
| Color Temp |
3000K/3500K/4000K (Cool White) |
| Color Accuracy | 80 CRI |
| Beam Angle | 110° |
| Weight | 0.2 lbs |
| Input Voltage |
Type A: Dependent on the ballast Type B: 120-277V AC |
| Operating Frequency | 50/60Hz |
| Power Factor | >0.9 |
| THD | 20% |
| Operating Temperature |
-4 to 113°F -20 to 45°C |
| L70 Lifespan |
50,000 Hours (Based on IES LM-80 results and TM-21 calculations) |
| Emits No UV Light | Yes |
| Dimmable | No |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| UL Listed | Yes |
| UL Classified | Yes |
| FCC Compliant | Yes (Part 15) |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| Warranty | 5 Year |
| UPC | 019813916460 |

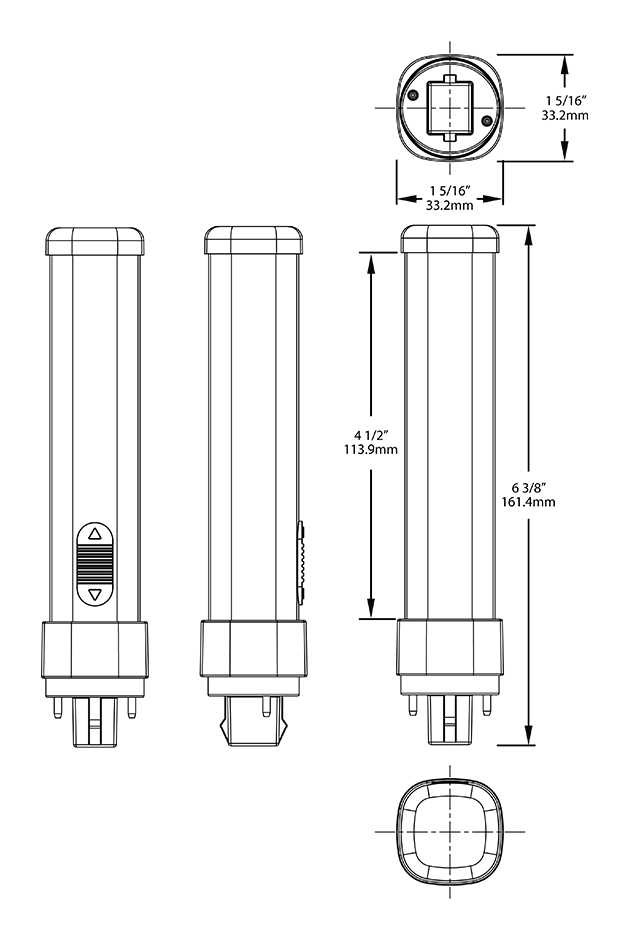

Dimensions
Spec Sheet:
PLC-8.5-H-8FA-HYB Spec Sheet
Instructions:
Installation Instructions
Compatibility:
Compatibility List
