9.5 Watts
960 / 1,020 / 1,050 Lumens
3000K/3500K/4000K
(Cool White)
80 CRI
Emits no UV light
Damp Locations
Dimmable
110° Beam
Operating Temp
-4°F to 113°F
120-277V AC
5 Year Warranty
Product Description
Rab 9.5 watt type A (ballast dependent) selectable color temperature (3000K / 3500K / 4000K) horizontal orientation PLC LED lamp with a 4-pin G24q base.
Product Features
Ballast Compatible (Type A)
Directly Compatible with Most Existing CFL Ballasts.
Works in G24q & GX24q Bases
Compatible with 4-pin CFL installations with G24q or GX24q bases.
Rotatable Base
Base rotates to allow you to direct light where needed.
Selectable Color Temperature
Switch on the LED allows you to select a color temperature or 3000K, 3500K, or 4000K.
Dimmable
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
Instant on
Instant-on with no warmup time.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: PLS9L53UHPNT.
80 CRI
Ideal for general lighting applications.
Specifications
| Product Type | Compact |
| Lamp Shape | PLC |
| Lamp Base | G24q (4-Pin) |
| Installation Type | Ballast Compatible (Type A) |
| Installation Orientation | Horizontal |
| Housing Material | Polycarbonate |
| Finish | White |
| Lens Finish | Frosted |
| Equivalent | 18W/26W/32W G24q CFL |
| Watts | 9.5W |
| Lumens | 960 / 1,020 / 1,050 Lumens |
| Efficacy | 101/107/110 lm/W |
| Color Temp |
3000K/3500K/4000K (Cool White) |
| Color Accuracy | 80 CRI |
| Beam Angle | 110° |
| Weight | 0.2 lbs |
| Input Voltage | 120-277V AC |
| Operating Frequency | 50/60Hz |
| Power Factor | >0.9 |
| THD | 20% |
| Operating Temperature |
-4 to 113°F -20 to 45°C |
| L70 Lifespan |
50,000 Hours (Based on IES LM-80 results and TM-21 calculations) |
| Emits No UV Light | Yes |
| Dimmable | Yes |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| DLC Listed |
Yes DLC Product Code: PLS9L53UHPNT |
| UL Listed | Yes |
| FCC Compliant | Yes (Part 15) |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| Warranty | 5 Year |
| UPC | 019813916446 |

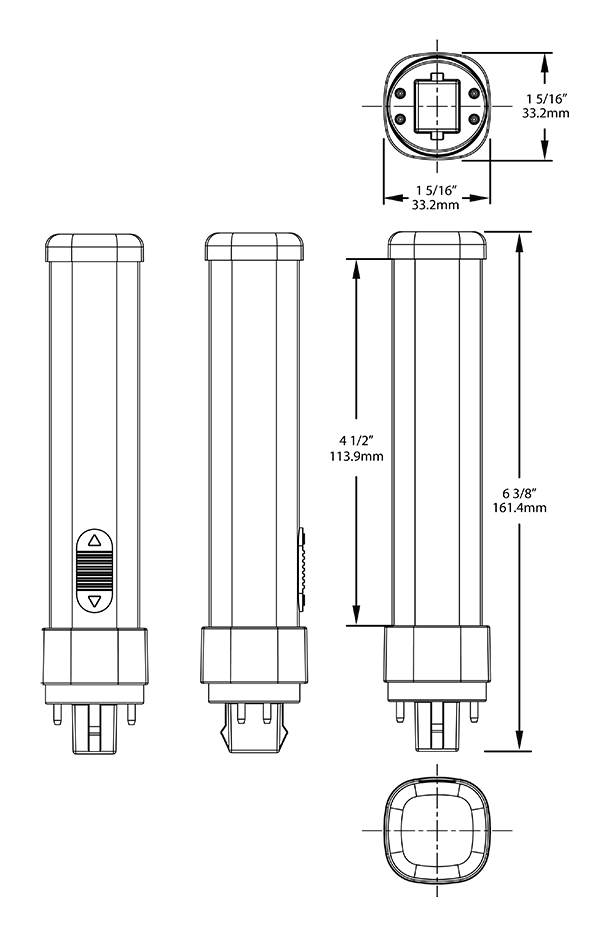

Dimensions
Spec Sheet:
PLC-9.5-H-8FA-DIR Spec Sheet
Instructions:
Installation Instructions
Compatibility:
Compatibility List
