13 Watts
950 Lumens
5000K
(Natural Light)
80 CRI
Damp Locations
Dimmable
(Compatible Ballast Required)
Operating Temp
-4°F to 113°F
120-277V AC
Product Description

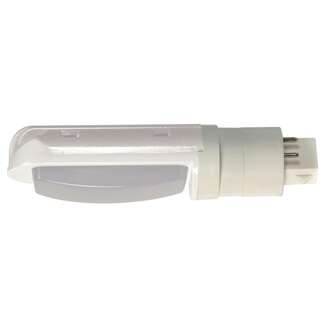

Satco 13 watts 5000K ballast dependent (Type A) horizontal PL LED with a 4-pin G24q base.
Product Features
Ballast Compatible (Type A)
Direct replacement for use on electronic ballasts with no rewiring required.
Damp Location Rated
Suitable for damp locations.
Specifications
| Brand Name | Satco Lighting |
| Lamp Type | PL |
| Lamp Shape | PL |
| Lamp Base | G24q (4-Pin) |
| Lamp Code | 13W/H/LED/CFL/850/4P |
| Installation Type |
UL Type A: Ballast Compatible (Type A) (See Ballast Compatibility List) |
| Ballasting Requirements | Ballast Required |
| Installation Orientation | Horizontal |
| Technology | LED |
| Housing Color | White |
| Finish | Frost |
| CFL Equivalent | 18, 26, 32 and 42 Watt |
| Watts | 13W |
| Lumens | 950 Lumens |
| Color Temp |
5000K (Natural Light) |
| Color Accuracy | 80 CRI |
| Beam Angle | 120° |
| Length | 5.25" |
| Diameter | 1.38" |
| Voltage | 120-277V AC |
| Operating Temperature |
-4 to 113°F -20 to 45°C |
| Average Rated Hours | 50,000 |
| Dimmable |
Ballast Compatible (Type A):
Yes, Check the Ballast Compatibility Chart
Direct AC Compatible (Type B - No Ballast):
Non-Dimmable |
| Damp Location Rated | Yes |
| Energy Star Approved | No |
| DLC Approved | No |
| cULus Classified | Yes |
| UL Classification | cULus - Damp Location Rated |
| FCC Compliant | Yes |
| RoHS Compliant | Yes |
| California T20 / T24 Rationale | Exempt - Base Not Regulated |
| UPC | 045923093111 |
Spec Sheet:
S9311 Spec Sheet
Compatibility:
PL 4 Pin Ballast Compatibility
