RAB 8.5W 3000K-4000K On Ballast or Direct Wire PLC LED

Product Description

Rab 8.5 watt dual mode (on ballast or direct wire) selectable color temperature (3000K / 3500K / 4000K) vertical orientation PLC LED lamp with a 2-pin G24d base.



Product Features

Ballast or Direct AC Compatible (Type A or B)

Type A/B hybrid is both ballast bypass and ballast compatible.

Works in G24d, GX24d, G24q & GX24q Bases

Compatible with 2-pin or 4-pin CFL installations with G24d, GX24d, G24q or GX24q bases.

Selectable Color Temperature

Switch on the LED allows you to select a color temperature or 3000K, 3500K, or 4000K.

Damp Location Rated

Suitable for damp locations.

Environmentally Friendly

Mercury and UV free. RoHS-compliant components.

Enclosed Fixture Rated

May be used in both enclosed and open fixtures.

Instant on

Instant-on with no warmup time.

80 CRI

Ideal for general lighting applications.



Specifications

Product Type	Compact
Lamp Shape	PLC
Lamp Base	G24d (2-Pin)
Installation Type	Type A: Ballast Compatible with Magnetic Ballasts Type B: Direct AC Compatible (Dual Mode)
Installation Orientation	Vertical
Housing Material	Polycarbonate
Finish	White
Lens Finish	Frosted
Equivalent	26W/32W G24d & G24q CFL
Watts	8.5W
Lumens	1,100 / 1,120 / 1,150 Lumens
Efficacy	129/132/135 lm/W
Color Temp	3000K/3500K/4000K (Cool White)
Color Accuracy	80 CRI
Beam Angle	120°
Weight	0.2 lbs
Input Voltage	Type A: Dependent on the ballast Type B: 120-277V AC
Operating Frequency	50/60Hz
Power Factor	>0.9
THD	20%
Operating Temperature	-4 to 113°F -20 to 45°C
L70 Lifespan	50,000 Hours (Based on IES LM-80 results and TM-21 calculations)
Emits No UV Light	Yes
Dimmable	No
Damp Location Rated	Yes
Enclosed Fixture Rated	Yes
UL Listed	Yes
UL Classified	Yes
FCC Compliant	Yes (Part 15)
RoHS Compliant	Yes
Mercury Free	Yes
Warranty	5 Year
UPC	019813916477

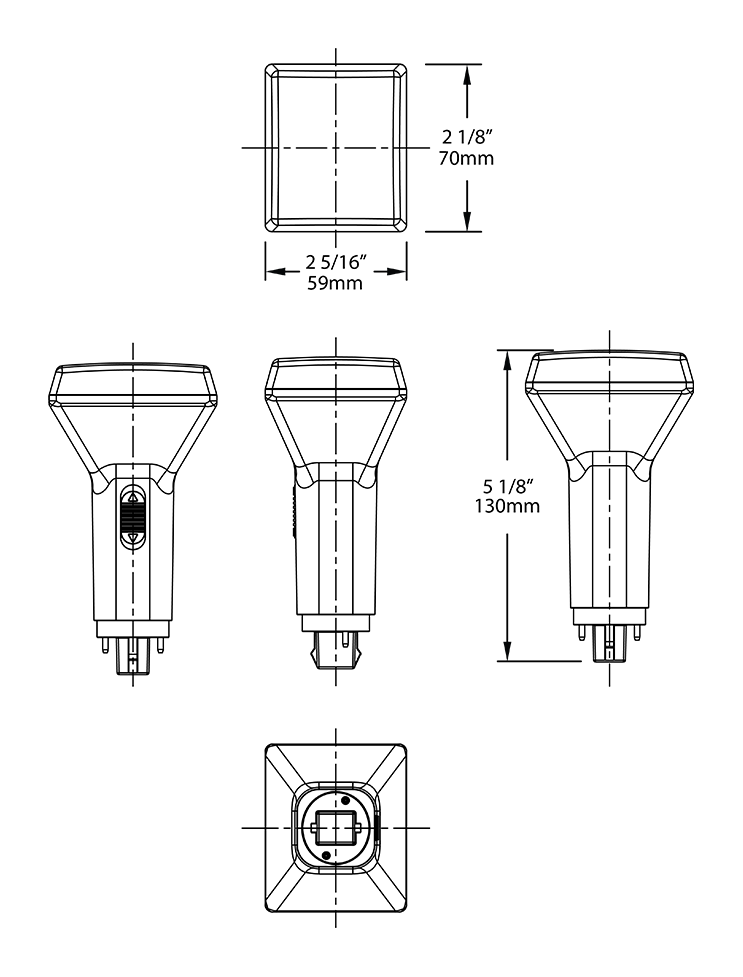

Dimensions

Spec Sheet: PLC-8.5-V-8FA-HYB Spec Sheet

Instructions: Installation Instructions

Compatibility: Compatibility List
