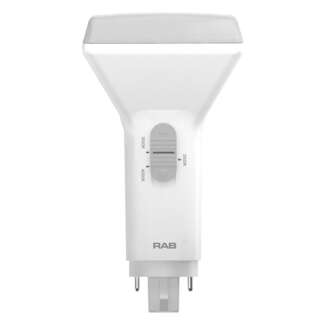

RAB 9.5W 3000K-4000K Ballast Dependent G24q PLC LED

Product Description

Rab 9.5 watt type A (ballast dependent) selectable color temperature (3000K / 3500K / 4000K) vertical orientation PLC LED lamp with a 4-pin G24q base.



Product Features

Ballast Compatible (Type A)

Directly Compatible with Most Existing CFL Ballasts.

Works in G24q & GX24q Bases

Compatible with 4-pin CFL installations with G24q or GX24q bases.

Selectable Color Temperature

Switch on the LED allows you to select a color temperature or 3000K, 3500K, or 4000K.

Dimmable

Damp Location Rated

Suitable for damp locations.

Environmentally Friendly

Mercury and UV free. RoHS-compliant components.

Enclosed Fixture Rated

May be used in both enclosed and open fixtures.

Instant on

Instant-on with no warmup time.

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.

80 CRI

Ideal for general lighting applications.



Specifications

Product Type	Compact
Lamp Shape	PLC
Lamp Base	G24q (4-Pin)
Installation Type	Ballast Compatible (Type A)
Installation Orientation	Vertical
Housing Material	Polycarbonate
Finish	White
Lens Finish	Frosted
Equivalent	18W/26W/32W G24q CFL
Watts	9.5W
Lumens	1,100 / 1,120 / 1,150 Lumens
Efficacy	115/117/121 lm/W
Color Temp	3000K/3500K/4000K (Cool White)
Color Accuracy	80 CRI
Beam Angle	120°
Weight	0.2 lbs
Input Voltage	120-277V AC
Operating Frequency	50/60Hz
Power Factor	>0.9
THD	20%
Operating Temperature	-4 to 113°F -20 to 45°C
L70 Lifespan	50,000 Hours (Based on IES LM-80 results and TM-21 calculations)
Emits No UV Light	Yes
Dimmable	Yes
Damp Location Rated	Yes
Enclosed Fixture Rated	Yes
DLC Qualified	Yes
UL Listed	Yes
FCC Compliant	Yes (Part 15)
RoHS Compliant	Yes
Mercury Free	Yes
Warranty	5 Year
UPC	019813916453

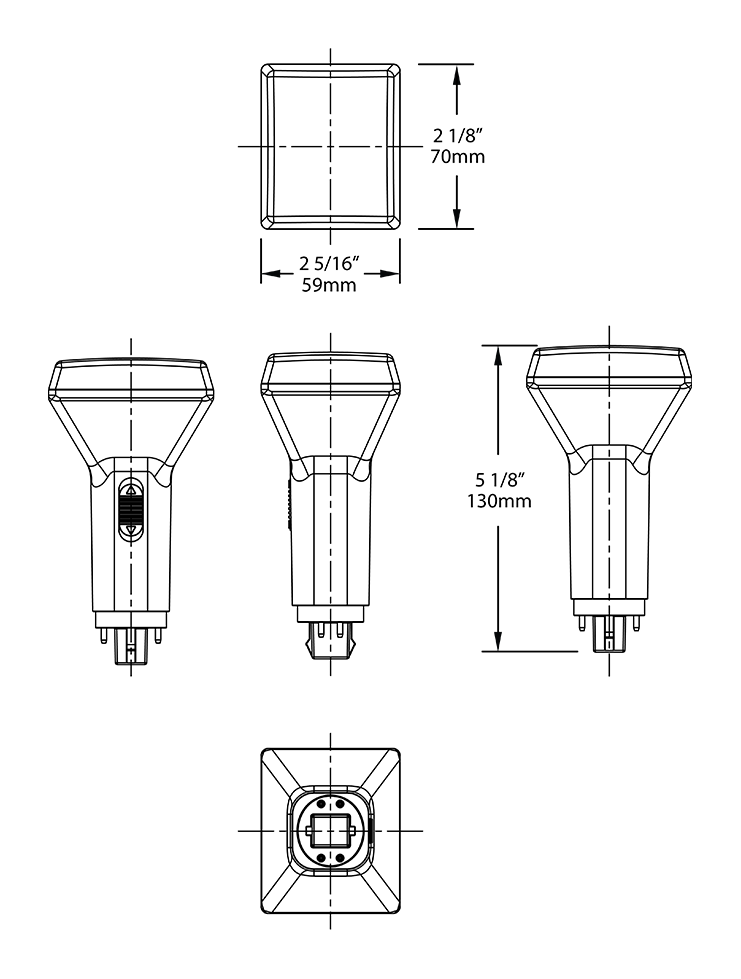

Dimensions

Spec Sheet: PLC-9.5-V-8FA-DIR Spec Sheet

Instructions: Installation Instructions

Compatibility: Compatibility List
