13.5 Watts
2,100 Lumens
4000K
(Cool White)
80 CRI
Emits no UV light
Damp Locations
Dimmable
120° Beam
Operating Temp
-4°F to 113°F
120-277V AC
5 Year Warranty
Product Description
Rab 13.5 watt 4000K ballast compatible (Type A) PLL LED with a 2G11 (4-pin) base.
Product Features
Ballast Compatible (Type A)
Directly Compatible with Most Existing Electronic CFL Ballasts.
Dimmable
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: P3QTB43Z.
80 CRI
Ideal for general lighting applications.
Specifications
| Product Type | Compact |
| Lamp Shape | PLL |
| Lamp Base | 2G11 (4-Pin) |
| Installation Type | Ballast Compatible (Type A) |
| Burning Position | Horizontal |
| Housing Material | Polycarbonate Endcap with Glass |
| Finish | White |
| Lens Finish | Frosted |
| Equivalent | 40W Fluorescent |
| Watts | 13.5W |
| Lumens | 2,100 Lumens |
| Efficacy | 156 lm/W |
| Color Temp |
4000K (Cool White) |
| Color Accuracy | 80 CRI |
| Beam Angle | 120° |
| Weight | 0.4 lbs |
| Input Voltage | 120-277V AC |
| Operating Frequency | 50/60Hz |
| Power Factor | >0.9 |
| THD | 20% |
| Operating Temperature |
-4 to 113°F -20 to 45°C |
| L70 Lifespan |
50,000 Hours (Based on IES LM-80 results and TM-21 calculations) |
| Emits No UV Light | Yes |
| Dimmable | Yes |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| DLC Qualified |
Yes DLC Product Code: P3QTB43Z |
| UL Listed | Yes |
| FCC Compliant | Yes (Part 15) |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| Warranty | 5 Year |
| UPC | 019813924328 |

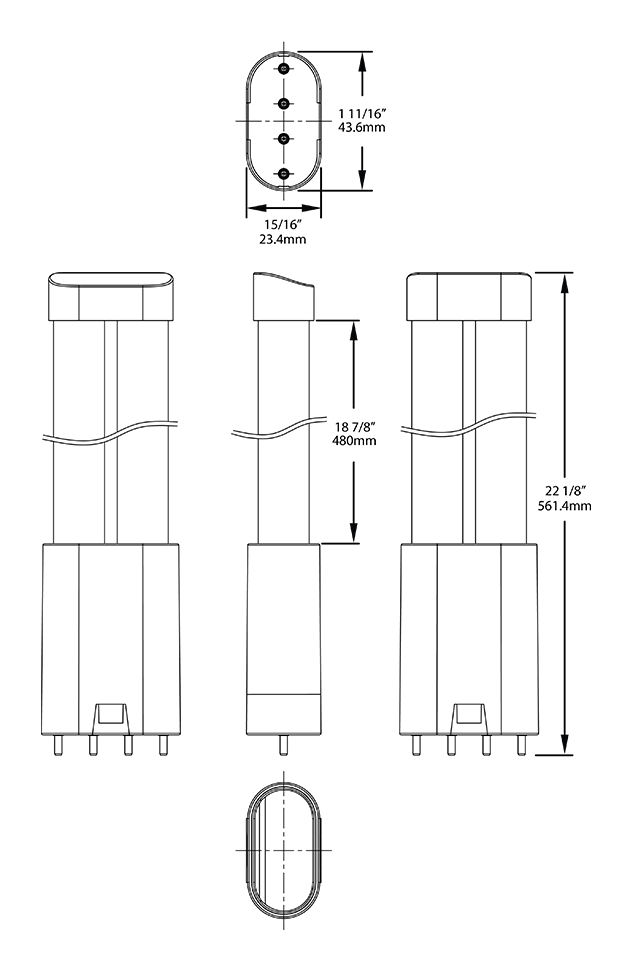

Dimensions
Spec Sheet:
PLL-13.5-840-DIR Spec Sheet
Instructions:
Installation Instructions
