Direct AC Capable
(Ballast Not Required)
15 Watts
1,900 Lumens
3500K
(Neutral White)
80 CRI
Damp Locations
Not Dimmable
360° Beam
Operating Temp
-4°F to 113°F
5 Year Warranty
Product Description

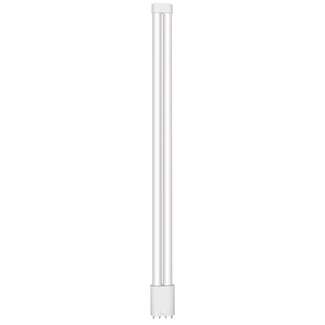

Satco 15 watt 3500K type B (ballast bypass) PLL LED lamp.
Energy Savings
The PLL LED only uses 15 watts.
| Replace | Watts | Savings |
| PL | 36 Watts | 21 Watts |
Specifications
| Lamp Type | PL |
| Lamp Shape | T5 |
| Lamp Base | 2G11 (4-Pin) |
| Lamp Code | 15PLL/LED/835/BP |
| Installation Type | Type B |
| Ballasting Requirements | Ballast Bypass |
| Burning Position | Universal |
| Technology | LED |
| Housing Color | White |
| Finish | Frosted White |
| Equivalent | 36W Fluorescent |
| Watts | 15W |
| Lumens | 1,900 Lumens |
| Color Temp |
3500K (Neutral White) |
| Color Accuracy | 80 CRI |
| Beam Angle | 360° |
| Length | 16.5" |
| Diameter | 5/8" |
| Weight | 0.36 lbs |
| Voltage | 120-277V AC |
| Operating Frequency | 50/60 Hz |
| Power Factor | 0.9 |
| THD | 20% (+/-5%) |
| Operating Temperature |
-4 to 113°F -20 to 45°C |
| Average Rated Hours | 50,000 |
| Dimmable | No |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| Energy Star Approved | No |
| UL Classification | cULus - Damp Location Rated |
| RoHS Compliant | Yes |
| CEC Status | Lawful for sale in California |
| Warranty |
5 Year Limited (Based on 10 Hours Per Day) |
| UPC | 045923099526 |
Spec Sheet:
S9952 Spec Sheet
