Compatible with
PL Magnetic Ballasts
Direct AC Compatible
(Ballast Not Required)
5.5 Watts
600 Lumens
4000K
(Cool White)
80 CRI
Emits no UV light
Damp Locations
Not Dimmable
110° Beam
5 Year Warranty
Product Description
Rab 5.5 watt 4000K dual mode (on ballast or direct wire) horizontal orientation PLS LED lamp with a 2-pin GX23 base.
Product Features
Ballast or Direct AC Compatible (Type A or B)
Type A/B hybrid is both ballast bypass and ballast compatible.
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
80 CRI
Ideal for general lighting applications.
Specifications
| Product Type | Compacts |
| Lamp Shape | PLS-Horizontal |
| Lamp Base | GX23 (2-Pin) |
| Installation Type |
Type A: Ballast Compatible with Magnetic Ballasts Type B: Direct AC Compatible (Dual Mode) |
| Ballasting Requirements | Ballast or Direct AC Compatible |
| Installation Orientation | Horizontal |
| Technology | LED |
| Housing Material | Polycarbonate |
| Finish | White |
| Lens Finish | Frosted |
| Equivalent | 13W Gx23 CFL |
| Watts | 5.5W |
| Lumens | 600 Lumens |
| Efficacy | 109.1 Lm/W |
| Color Temp |
4000K (Cool White) |
| Color Accuracy | 80 CRI |
| Beam Angle | 110° |
| Weight | 0.2 lbs |
| Input Voltage |
Type A: Dependent on the ballast Type B: 120-277V AC |
| Operating Frequency |
Type A: Dependent on the ballast Type B: 50/60 Hz |
| Driver |
Type:
Constant Current
|
| Power Factor | >0.9 |
| THD | <20% |
| L70 Lifespan |
50,000 Hours LED lifespan based on IES LM-70 results |
| Emits No UV Light | Yes |
| Dimmable | No |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| UL Listed | Yes |
| UL Classified | Yes |
| FCC Compliant | Yes (Part 15) |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| Warranty | 5 Year |
| UPC | 019813917870 |

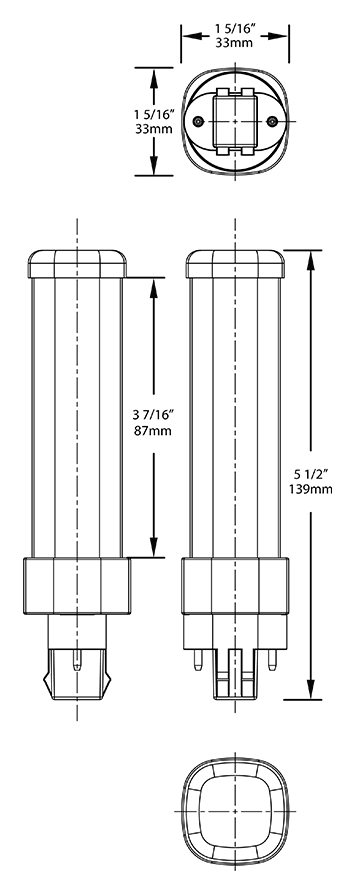

Dimensions
Spec Sheet:
PLS-5-H-840-HYB Spec Sheet
Instructions:
Installation Instructions
