RAB 5.5W 4000K Type A or Type B GX23 Base Horizontal PLS LED

Product Description

Rab 5.5 watt 4000K dual mode (on ballast or direct wire) horizontal orientation PLS LED lamp with a 2-pin GX23 base.



Product Features

Ballast or Direct AC Compatible (Type A or B)

Type A/B hybrid is both ballast bypass and ballast compatible.

Damp Location Rated

Suitable for damp locations.

Environmentally Friendly

Mercury and UV free. RoHS-compliant components.

Enclosed Fixture Rated

May be used in both enclosed and open fixtures.

80 CRI

Ideal for general lighting applications.



Specifications

Product Type	Compact
Lamp Shape	PLS-Horizontal
Lamp Base	GX23 (2-Pin)
Installation Type	Type A: Ballast Compatible with Magnetic Ballasts Type B: Direct AC Compatible (Dual Mode)
Installation Orientation	Horizontal
Housing Material	Polycarbonate
Finish	White
Endcap Material	Copper
Equivalent	11W CFL
Watts	5.5W
Lumens	600 Lumens
Efficacy	109.1 lm/W
Color Temp	4000K (Cool White)
Color Accuracy	≥80 CRI
Beam Angle	120°
Input Voltage	120-277V AC
Operating Frequency	50/60Hz
Driver	Type: Constant Current 120V: 0.05A
Power Factor	0.9
THD	20%
Flicker	50%
Operating Temperature	-4 to 113°F -20 to 45°C
L70 Lifespan	50,000 Hours LED lifespan based on IES LM-70 results
Dimmable	No
Damp Location Rated	Yes
Enclosed Fixture Rated	Yes
UL Listed	Yes Suitable for damp locations
UL Classified	Yes
FCC Compliant	Yes (Part 15)
Mercury Free	Yes
Warranty	5 Year
UPC	192552007306

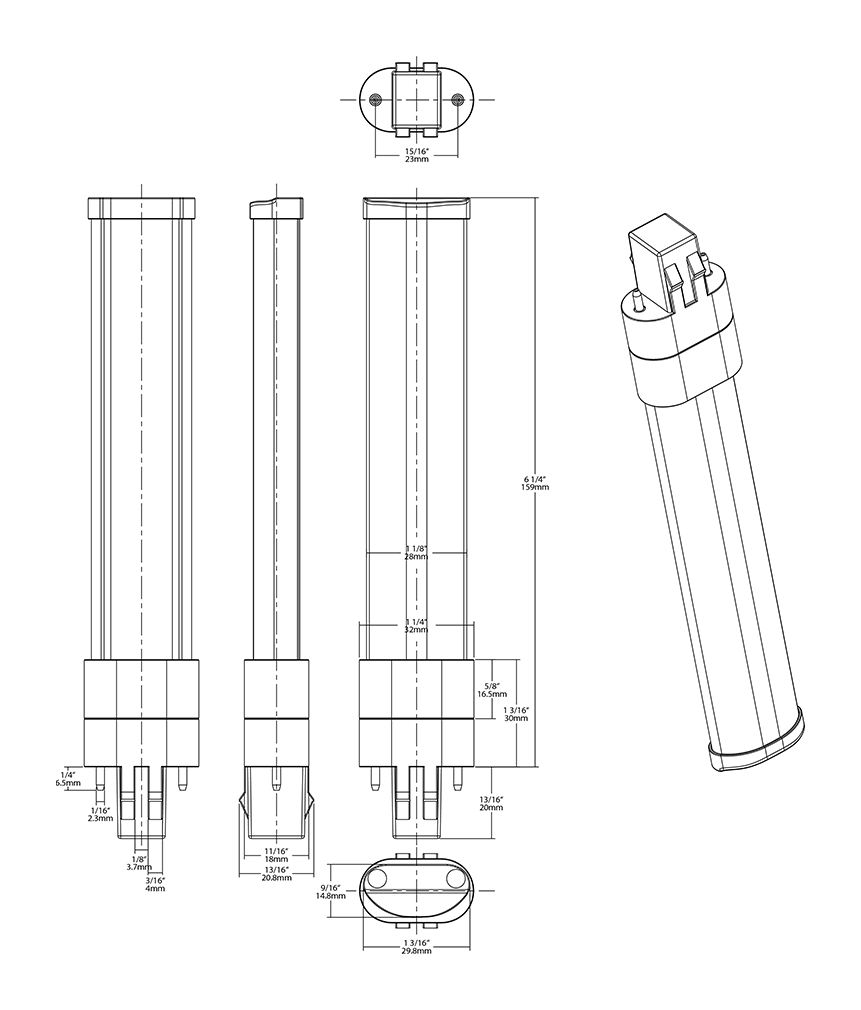

Dimensions

Spec Sheet: PLS-5.2-H-840-HYB Spec Sheet

Instructions: Installation Instructions
