RAB 5.5W 3000K On Ballast or Direct Wire GX23 PLS LED

Product Description

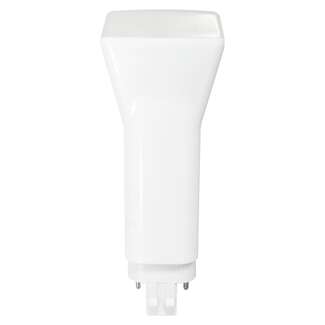

Rab 5.5 watt 3000K dual mode (on ballast or direct wire) vertical orientation PLS LED lamp with a 2-pin GX23 base.



Product Features

Ballast or Direct AC Compatible (Type A or B)

Type A/B hybrid is both ballast bypass and ballast compatible.

Damp Location Rated

Suitable for damp locations.

Environmentally Friendly

Mercury and UV free. RoHS-compliant components.

Enclosed Fixture Rated

May be used in both enclosed and open fixtures.

80 CRI

Ideal for general lighting applications.



Specifications

Product Type	Compacts
Lamp Shape	PLS-Vertical
Lamp Base	GX23 (2-Pin)
Installation Type	Type A: Ballast Compatible with Magnetic Ballasts Type B: Direct AC Compatible (Dual Mode)
Ballasting Requirements	Ballast or Direct AC Compatible
Installation Orientation	Vertical
Technology	LED
Housing Material	Polycarbonate
Finish	White
Lens Finish	Frosted
Equivalent	13W Gx23 CFL
Watts	5.5W
Lumens	600 Lumens
Efficacy	109 Lm/W
Color Temp	3000K (Warm White)
Color Accuracy	80 CRI
Beam Angle	120°
Weight	0.2 lbs
Input Voltage	Type A: Dependent on the ballast Type B: 120-277V AC
Operating Frequency	Type A: Dependent on the ballast Type B: 50/60 Hz
Driver	Type: Constant Current 120V: 62mA 277V: 20mA
Power Factor	>0.9
THD	20%
Operating Temperature	-4 to 113°F -20 to 45°C
L70 Lifespan	50,000 Hours (Based on IES LM-80 results and TM-21 calculations)
Emits No UV Light	Yes
Dimmable	No
Damp Location Rated	Yes
Enclosed Fixture Rated	Yes
UL Listed	Yes
UL Classified	Yes
FCC Compliant	Yes (Part 15)
RoHS Compliant	Yes
Mercury Free	Yes
Warranty	5 Year
UPC	019813917894

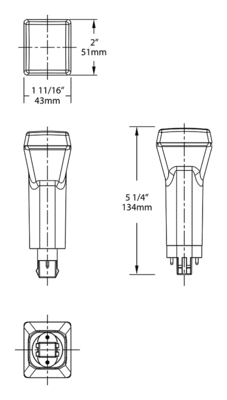

Dimensions

Spec Sheet: PLS-5.5-V-830-HYB Spec Sheet

Instructions: Installation Instructions

Compatibility: Compatibility List
