RAB 14.5W 3500K Horizontal Ballast Compatible PLT LED

Product Description

Rab 14.5 watt 3500K ballast compatible (Type A) PLT LED with a G24q (4-pin) base.



Product Features

Ballast Compatible (Type A)

Directly Compatible with Most Existing CFL Ballasts.

Works in G24q & GX24q Bases

Compatible with 4-pin CFL installations with G24q or GX24q bases.

Damp Location Rated

Suitable for damp locations.

Environmentally Friendly

Mercury and UV free. RoHS-compliant components.

Enclosed Fixture Rated

May be used in both enclosed and open fixtures.

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
Designed to meet DLC 5.1 requirements.
DLC Product Code: PLB5ZUQRIR97.

80 CRI

Ideal for general lighting applications.



Specifications

Product Type	Compact
Lamp Shape	PLT-Horizontal
Lamp Base	G24q (4-Pin)
Installation Type	Ballast Compatible (Type A)
Ballasting Requirements	Ballast Required
Burning Position	Horizontal
Technology	LED
Housing Material	Polycarbonate endcap with aluminum heatsink and glass envelop
Finish	White
Lens Finish	Frosted
Equivalent	42W G24q & Gx24q CFL
Watts	14.5W
Lumens	1,900 Lumens
Efficacy	131 lm/W
Color Temp	3500K (Neutral White)
Color Accuracy	80 CRI
Weight	0.6 lbs
Input Voltage	120-277V AC
Operating Frequency	Ballast Dependent
Driver	Type: Constant Current 120V: Ballast Dependen 277V: Ballast Dependen
Power Factor	>0.9
THD	<20%
Operating Temperature	Ballast Dependent
L70 Lifespan	50,000 Hours LED lifespan based on IES LM-70 results
Emits No UV Light	Yes
Dimmable	Not suggested for dimming applications
Damp Location Rated	Yes
Enclosed Fixture Rated	Yes
DLC Listed	Yes Designed to meet DLC 5.1 requirements. DLC Product Code: PLB5ZUQRIR97
UL Listed	Yes
FCC Compliant	Yes (Part 15)
RoHS Compliant	Yes
Mercury Free	Yes
Warranty	5 Year
UPC	019813918051

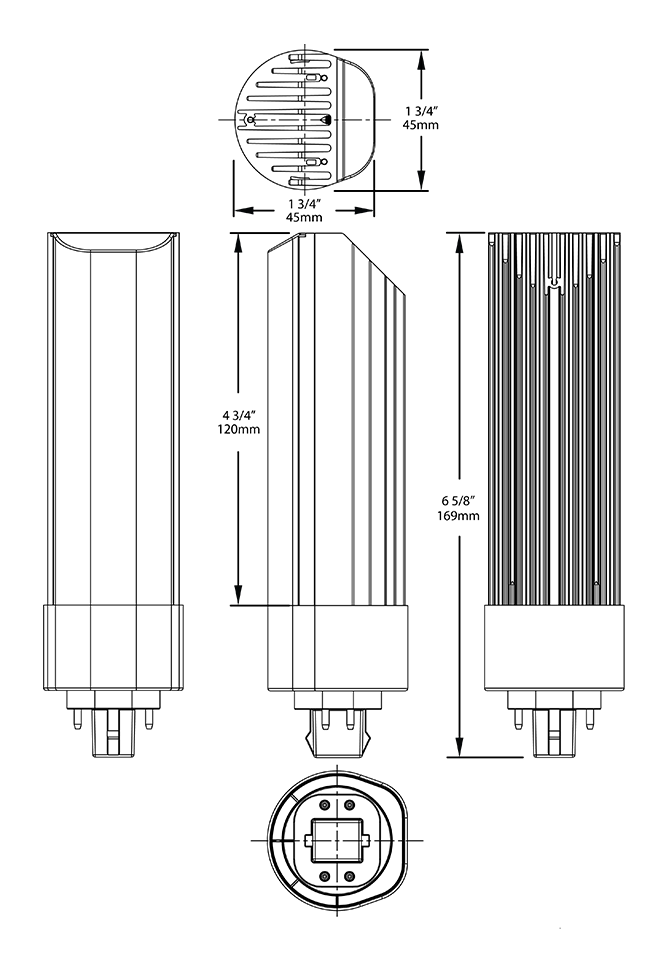

Dimensions

Spec Sheet: PLT-14.5-H-835-DIR Spec Sheet
