Direct AC Compatible
(Ballast Not Required)
16.5 Watts
1,900 Lumens
4000K
(Cool White)
80 CRI
Emits no UV light
Damp Locations
Not Dimmable
120° Beam
Operating Temp
-4°F to 113°F
5 Year Warranty
Product Description
Rab 16.5 watt 4000K type B (ballast bypass) PLT LED lamp. Compatible with 2 pin G24d/GX24d or 4 pin G24q/GX24q bases.
Product Features
Direct AC Compatible (Type B)
Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast.
Works in G24d, GX24d, G24q & GX24q Bases
Compatible with 2-pin or 4-pin CFL installations with G24d, GX24d, G24q or GX24q bases.
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
80 CRI
Ideal for general lighting applications.
Specifications
| Product Type | Compact |
| Lamp Shape | PLT |
| Lamp Base | G24d (2-Pin) |
| Installation Type | UL Type B, Ballast Bypass |
| Installation Orientation | Vertical |
| Housing Material | Polycarbonate |
| Finish | White |
| Lens Finish | Frosted |
| Equivalent | 42W G24d/G24q/Gx24q CFL |
| Watts | 16.5W |
| Lumens | 1,900 Lumens |
| Efficacy | 115 lm/W |
| Color Temp |
4000K (Cool White) |
| Color Accuracy | 80 CRI |
| Beam Angle | 120° |
| Weight | 0.6 lbs |
| Input Voltage | 120-277V AC |
| Operating Frequency | 50/60Hz |
| Power Factor | >0.9 |
| THD | 20% |
| Operating Temperature |
-4 to 113°F -20 to 45°C |
| L70 Lifespan |
50,000 Hours (Based on IES LM-80 results and TM-21 calculations) |
| Emits No UV Light | Yes |
| Dimmable | No |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| UL Classified | Yes |
| UL Recognized | Yes |
| FCC Compliant | Yes (Part 15) |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| Warranty | 5 Year |

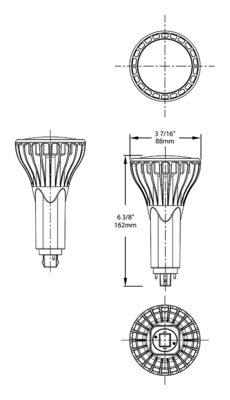

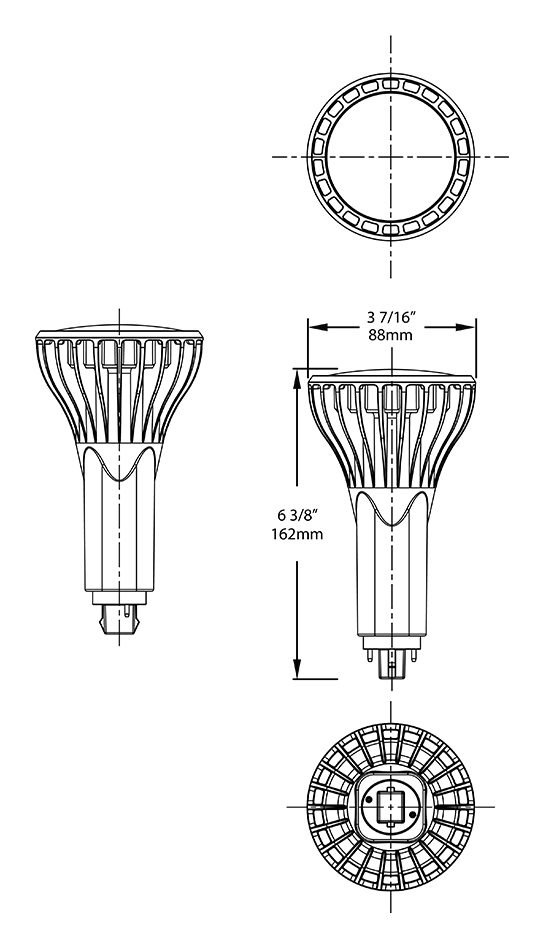

Dimensions
Spec Sheet:
PLT-16.5-V-840-BYP Spec Sheet
Instructions:
Installation Instructions
