RAB 50 Watt 5000K High Lumen Multi-Angle LED

Product Description

RAB 50 Watt 5000K rotating multi-beam LED lamp with an EX39 mogul extended base.



Product Features

HID Replacement

Energy efficient LED replacement for traditional metal halide or high pressure sodium HID Lamps.

Direct AC Compatible (Type B)

Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast.

Multiple Beam Angle Configurations

The adjustable HID LED has multiple beam angle configurations making it ideal for low/high bay, shoebox, and post top applications.

Integrated Sensor Port

Lamp includes on board low-voltage AUX port for passive infrared, microwave, or daylight photocell sensor accessories.

IP64 Rating

Ingress Protection rating of IP64 for water and dust resistant.

Damp Location Rated

Suitable for damp locations.

Environmentally Friendly

Mercury and UV free. RoHS-compliant components.

Enclosed Fixture Rated

May be used in both enclosed and open fixtures.

4kV Surge Protection

Built-in surge protection defends against momentary voltage surges up to 4kV.

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
Designed to meet DLC 5.1 requirements.
DLC Product Code: PLU6G11X8M9H.

Overheat Sensor

When the internal overheat sensor engages it will automatically reduce output to 70% of the rated wattage until the sensor cools, and will then light up again to 100%.



Specifications

Product Type	HID Replacement
Lamp Shape	Post Top/ High Bay / Shoebox
Lamp Base	Mogul Extended (EX39)
Installation Type	UL Type B, Ballast Bypass
Ballasting Requirements	No Ballast - Wire 100-277V AC Direct Only
Burning Position	Universal
Technology	LED
Housing Material	Polycarbonate & Metal heat sink
Finish	White
Equivalent	200W Metal Halide or High Pressure Sodium
Watts	50W
Lumens	7,500 Lumens
Efficacy	150 lm/W
Color Temp	5000K (Daylight)
Color Accuracy	80 CRI
Weight	1.9 lbs
Input Voltage	100-277V AC
Operating Frequency	60 Hz
Power Factor	>0.9
THD	<20%
Surge Protection	4kV
Operating Temperature	-22 to 140°F -30 to 60°C
L70 Lifespan	50,000 Hours (Based on IES LM-80 results and TM-21 calculations)
Emits No UV Light	Yes
Dimmable	Yes (0-10V Dimming Only) Only RAB Specified Compatible Dimmers
Compatible Dimmers	Legrand RH4FBL3PTC
Damp Location Rated	Yes
Enclosed Fixture Rated	Yes
DLC Listed	Yes Designed to meet DLC 5.1 requirements. DLC Product Code: PLU6G11X8M9H
IP64 Rating	Yes
UL Listed	Yes
UL Classified	Yes
FCC Compliant	Yes (Part 15)
RoHS Compliant	Yes
Mercury Free	Yes
Warranty	5 Year
UPC	019813908359

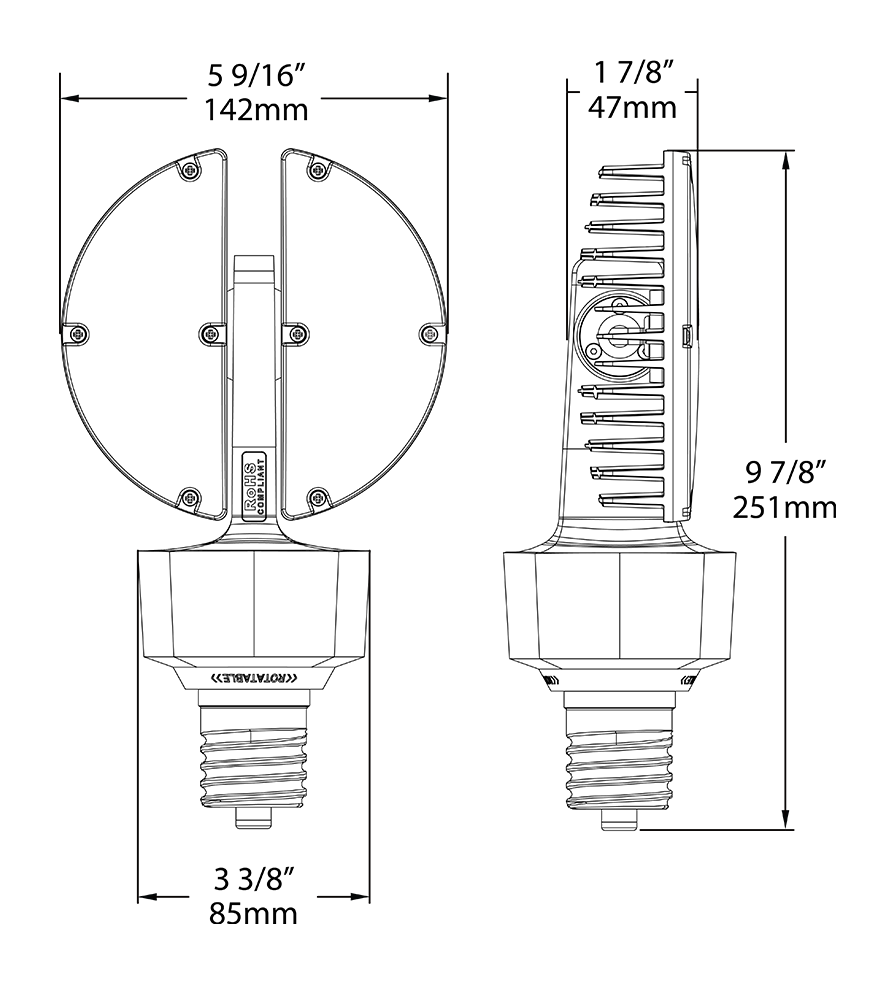

Dimensions

Spec Sheet: HID-50-EX39-850-BYP-ADJ Spec Sheet

Instructions: Installation Instructions
