Direct AC Compatible
(Ballast Not Required)
16 Watts
2,000 Lumens
5000K
(Natural Light)
80 CRI
Wet Locations
IP65 Rated
Wet Locations
Not Dimmable
360° Beam
Operating Temp
-22°F to 149°F
Medium Base
3 Year Warranty
Product Description
Satco 16 watt 5000K direct 120-277 volt AC compatible (Type B) high lumen filament LED with a medium base.
Product Features
Wet Location Rated
Suitable for wet locations.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
Common Applications
- High Bay / Low Bay
- Security Lighting
- Post Top Fixtures
- Wall Pack Fixtures
Specifications
| Lamp Type | LED HID |
| Lamp Shape | ED23 |
| Lamp Base | Medium (E26) |
| Lamp Code | 16W/LED/HID/ED23/850/E26 |
| Burning Position | Universal |
| Technology | LED |
| Housing Color | White |
| Finish | White |
| Lens Material | Glass |
| Additional Information | HI-PRO Filament 120-277V |
| Equivalent |
125W Incandescent 70W HID 32W Fluorescent |
| Watts | 16W |
| Lumens | 2,000 Lumens |
| Color Temp |
5000K (Natural Light) |
| Color Accuracy | 80 CRI |
| Beam Angle | 360° |
| Length | 7.28" |
| Diameter | 2-7/8" |
| Weight | 0.28 lbs |
| Voltage | 120-277V AC |
| Operating Frequency | 60 Hz |
| Power Factor | 0.9 |
| Operating Temperature |
-22 to 149°F -30 to 65°C |
| Average Rated Hours | 25,000 |
| Dimmable | No |
| Wet Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| Energy Star Approved | No |
| IP65 Rating | Yes |
| cULus Listed | cULus Listed - Wet Location Rated |
| FCC Compliant | Yes |
| RoHS Compliant | Yes |
| CEC Status | Lawful for sale in California |
| Warranty |
3 Year Limited (Based on 12 Hours Per Day) |
| UPC | 045923131301 |
Dimensions

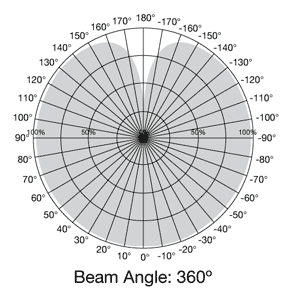

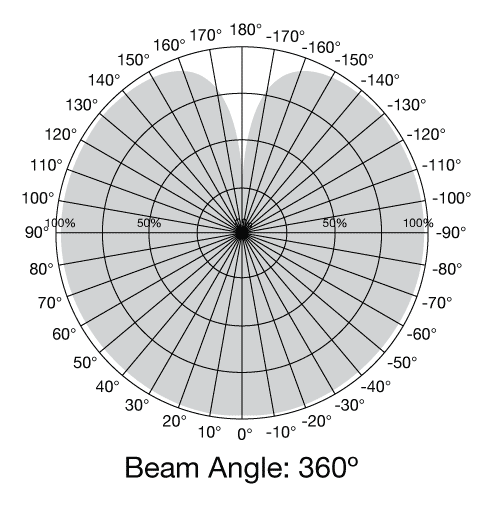

Beam Profile
Spec Sheet:
S13130 Spec Sheet
Instructions:
S13130 Instructions
