Direct AC Compatible
(Ballast Not Required)
60 / 80 / 115 Watts
8,100 - 8,700 Lumens
(At 60 Watts)
10,800 - 11,600 Lumens
(At 80 Watts)
15,525 - 16,675 Lumens
(At 115 Watts)
3000K/4000K/5000K
80+ CRI
Emits no UV light
Damp Locations
IP64 Rated
Damp Locations
Dimmable
(Via Optional Accessory Only)
Operating Temp
-22°F to 140°F
Mogul Extended Base
5 Year Warranty
Product Description

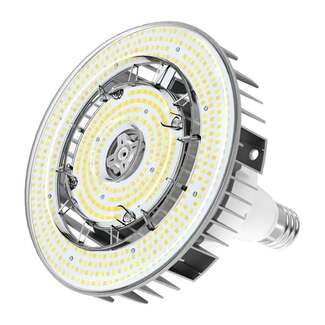

Rab selectable wattage (60/80/115 watt) and selectable color temperature (3000K/4000K/5000K) ballast by-pass high bay LED HID replacement with a ex mogul base.
Integrated 5-pin AUX port to add lamp-level sensor control.
Product Features
HID Replacement
Replaces traditional metal halide or high pressure sodium HID lamps.
Direct AC Compatible (Type B)
Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast.
Integrated Sensor Port - 5-Pin
Add the Lightcloud Blue 5-pin plug-in controller with optional sensor to connect to the Lightcloud Blue Bluetooth mesh wireless network lighting control system.
Selectable Wattage & Color Temperature
Field adjustable wattage and color temperature allows for flexibility both during and after installation.
IP64 Rating
Ingress Protection rating of IP64 for water and dust resistant.
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Consistent Fixture-to-Fixture LED Color
6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
4kV Surge Protection
Built-in surge protection defends against momentary voltage surges up to 4kV.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
Designed to meet DLC 5.1 requirements.
DLC Product Code: PLNAFK8CSGYM.
Specifications
| Lamp Shape | High bay (sensor) |
| Lamp Base | Mogul Extended (EX39) |
| Installation Type |
UL Type B: Direct AC Compatible (Type B - No Ballast) |
| Ballasting Requirements | No Ballast - Wire 100-277V AC Direct Only |
| Installation Orientation | Vertical |
| Technology | LED |
| Sensor | 5-Pin Sensor Port |
| Housing Material | Polycarbonate |
| Finish | Clear |
| Lamp Base Material | Metal |
| Equivalent | 200W/250W/400W Metal Halide |
| Watts | 60 / 80 / 115W |
| Lumens |
60W: 3000K: 8,100 Lumens 4000K: 8,700 Lumens 5000K: 8,400 Lumens 80W: 3000K: 10,800 Lumens 4000K: 11,600 Lumens 5000K: 11,200 Lumens 115W: 3000K: 15,525 Lumens 4000K: 16,675 Lumens 5000K: 16,100 Lumens |
| Efficacy |
60W / 80W / 115W: 3000K: 135 Lm/W 4000K: 145 Lm/W 5000K: 140 Lm/W |
| Color Temp |
Adjustable 3000K / 4000K / 5000K |
| Color Accuracy | ≥80 CRI |
| CRI R9 | High color performance with R9 no less than 0 |
| Width | 9-1/16" |
| Height | 9-3/16" |
| Input Voltage | 100-277V AC |
| Operating Frequency | 50/60 Hz |
| Driver |
Type:
Constant Current
120V:
988mA
208V:
587mA
240V:
521mA
277V:
415mA
|
| Power Factor | ≥0.9 |
| THD | ≤20% |
| Flicker | <30% |
| Surge Protection | 4kV |
| Operating Temperature |
-22 to 140°F -30 to 60°C |
| L70 Lifespan |
50,000 Hours LED lifespan based on IES LM-70 results |
| Emits No UV Light | Yes |
| Dimmable |
Yes, via the Lightcloud Blue mobile app only. Do not use with a standard dimmer or dimming control. |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| Certification Model Number | H20043(HIDFA-115S-V-EX39-8CCT-BYP/5SP) |
| DLC Listed |
Yes Designed to meet DLC 5.1 requirements. DLC Product Code: PLNAFK8CSGYM |
| IP64 Rating | Yes |
| UL Listed | Yes |
| UL Classified | Yes |
| FCC Compliant | Yes (Part 15B) |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| California Status | Lawful for Sales in California |
| Warranty | 5 Year |
| UPC | 192552027014 |
