Direct AC Compatible
(Ballast Not Required)
80 Watts
10,800 Lumens
5000K
(Natural Light)
80 CRI
Emits no UV light
Damp Locations
IP64 Rated
Damp Locations
Not Dimmable
Operating Temp
-22°F to 140°F
Mogul Extended Base
5 Year Warranty
Product Description
Rab 80 watt 5000K HID eco high bay LED with mogul extended base.
Product Features
HID Replacement
Energy efficient LED replacement for traditional metal halide or high pressure sodium HID Lamps.
Ballast Bypass
Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast.
Integrated Sensor Port
Lamp includes on board low-voltage AUX port for passive infrared, microwave, or daylight photocell sensor accessories.
IP64 Rating
Ingress Protection rating of IP64 for water and dust resistant.
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
4kV Surge Protection
Built-in surge protection defends against momentary voltage surges up to 4kV.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
80 CRI
Ideal for general lighting applications.
Specifications
| Product Type | HID |
| Lamp Shape | High Bay |
| Lamp Base | Mogul Extended (EX39) |
| Installation Type | UL Type B, Ballast Bypass |
| Burning Position | Base Up |
| Housing Material | Polycarbonate & Metal heat sink |
| Finish | White |
| Equivalent | 250W Metal Halide or High Pressure Sodium |
| Watts | 80W |
| Lumens | 10,800 Lumens |
| Efficacy | 135 lm/W |
| Color Temp |
5000K (Natural Light) |
| Color Accuracy | 80 CRI |
| Beam Angle | 120° |
| Weight | 3.1 lbs |
| Input Voltage | 100-277V AC |
| Operating Frequency | 60 Hz |
| Power Factor | >0.9 |
| THD | <20% |
| Surge Protection | 4kV |
| Operating Temperature |
-22 to 140°F -30 to 60°C |
| L70 Lifespan |
50,000 Hours (Based on IES LM-80 results and TM-21 calculations) |
| Emits No UV Light | Yes |
| Dimmable | No |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| DLC Qualified | Yes |
| IP64 Rating | Yes |
| UL Listed | Yes |
| UL Classified | Yes |
| FCC Compliant | Yes (Part 15) |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| Warranty | 5 Year Limited |
| UPC | 019813908496 |

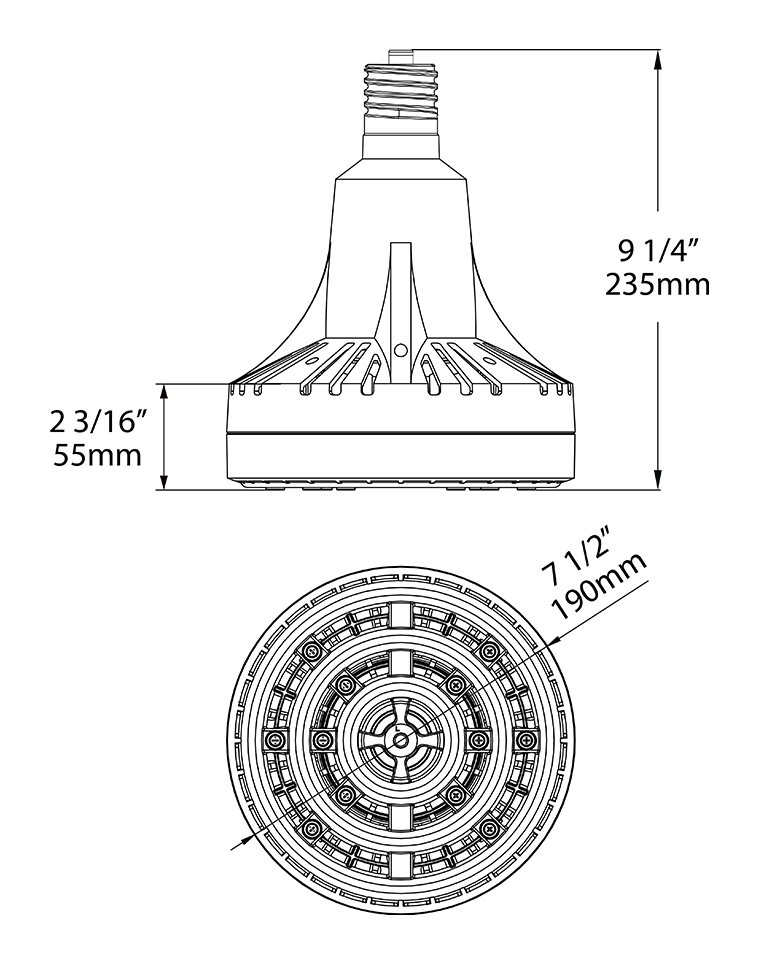

Dimensions
Spec Sheet:
HID-80-V-EX39-850-BYP-HB-ECO Spec Sheet
Instructions:
Installation Instructions
