Direct AC Compatible
(Ballast Not Required)
65 Watts
8,000 Lumens
5000K
(Daylight)
80 CRI
Damp Locations
Not Dimmable
Operating Temp
-31°F to 104°F
Medium Base
3 Year Warranty
Product Description
Rab 65 watt 5000K multiple panel adjustable beam angle HID LED garage light with a medium base.
Product Features
Multiple Beam Angle Configurations
The four adjustable light panels allow for a multitude of beam angles from 120 to 270 degrees.
Damp Location Rated
Suitable for damp locations.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
80 CRI
Ideal for general lighting applications.
Specifications
| Product Type | HID Replacement |
| Lamp Shape | Adjustable Multi-Beam |
| Lamp Base | Medium (E26) |
| Installation Type |
UL Type B: Direct AC Compatible (Type B - No Ballast) |
| Ballasting Requirements | No Ballast - Wire 120-277V AC Direct Only |
| Installation Orientation | Vertical |
| Technology | LED |
| Housing Material | Aluminum |
| Endcap Material | Polycarbonate |
| Equivalent |
200W HPS (High Pressure Sodium) 200W MH (Metal-Halide) |
| Watts | 65W |
| Lumens | 8,000 Lumens |
| Efficacy | 123.1 Lm/W |
| Color Temp |
5000K (Daylight) |
| Color Accuracy | 80 CRI |
| Beam Angle |
120° - 270° (Adjustable) |
| Length | 8 13/16" |
| Diameter | 10 3/16" |
| Height | 3 1/2" |
| Weight | 1.4 lbs |
| Input Voltage | 120-277V AC |
| Operating Frequency | 50/60 Hz |
| Power Factor | >0.9 |
| THD | 20% |
| Flicker | Yes |
| Operating Temperature |
-31 to 104°F -35 to 40°C |
| L70 Lifespan |
25,000 Hours LED lifespan based on IES LM-70 results |
| Dimmable | No |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| UL Listed |
Yes Suitable for damp locations |
| FCC Compliant | Yes (Part 15) |
| Warranty | 3 Year |
| UPC | 192552012461 |

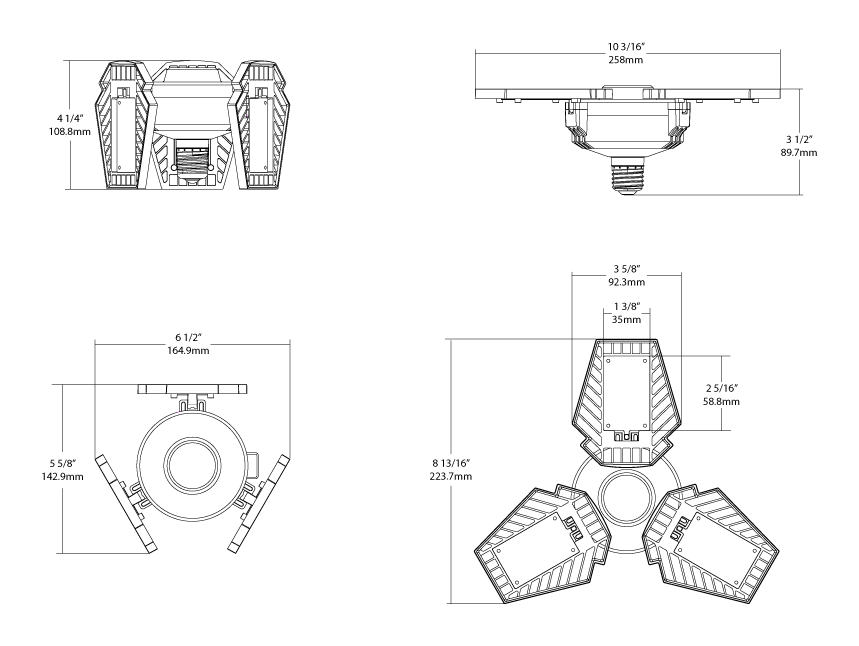

Dimensions
Spec Sheet:
HID-65-V-E26-850-BYP-GL Spec Sheet
Instructions:
Installation Instructions
