Satco 30 Watt 5000K High Lumen Multi-Beam LED

Product Description

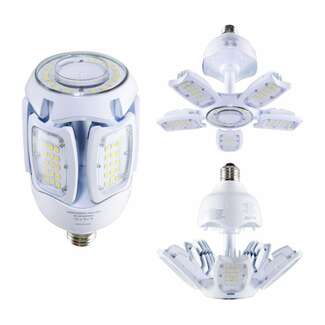

Satco 30 watt 5000K adjustable beam angle LED HID replacement with a medium base.



Product Features

Adjustable Beam Angle

The panels may be adjusted individually in any direction for maximum beam control.

Integrated Sensor Port

PIR motion sensor option is available.

IP64 Rating

Ingress Protection rating of IP64 for water and dust resistant.

Damp Location Rated

Suitable for damp locations.

Enclosed Fixture Rated

May be used in both enclosed and open fixtures.

Thermal Management

Advanced passive heat dissipation.



Specifications

Lamp Type	LED HID
Lamp Shape	Adjustable Multi-Beam
Lamp Base	Medium (E26)
Lamp Code	30W/LED/HID/MB-G3/50K/100-277V
Installation Type	Direct AC Compatible (Type B)
Ballasting Requirements	Ballast Bypass
Technology	LED
Housing Color	White
Finish	Clear
Lens Material	Thermo Plastic (PBT)
Lens Finish	Clear
Photocell or Sensor	Optional Add-On
Equivalent	200W Incandescent 150W HID (High-Intensity Discharge) 55W Fluorescent
Watts	30W
Lumens	4,200 Lumens
Color Temp	5000K (Natural Light)
Color Accuracy	80 CRI
Beam Angle	120°, 150°, or 260°
Length	6.69"
Diameter	3.35"
Min Compartment Size	Width: 8.00" Depth: 8.00" Height: 11.00"
Weight	1.37 lbs
Voltage	100-277V AC
Operating Frequency	50/60 Hz
Surge Protection	4KV
Operating Temperature	-4 to 149°F -20 to 65°C
Average Rated Hours	50,000
Dimmable	No
Damp Location Rated	Yes
Enclosed Fixture Rated	Yes
Energy Star Approved	No
IP64 Rating	Yes
cULus Listed	cULus Listed - Damp Location Rated
FCC Compliant	Yes
RoHS Compliant	Yes
California Status	Lawful for sale in California
California T20 / T24 Rationale	Exempt - >2600 Lumens
Colorado Status	Lawful for sale
Hawaii Status	Lawful for sale
Nevada Status	Lawful for sale
Vermont Status	Lawful for sale
Washington Status	Lawful for sale
Warranty	5 Year Limited
UPC	045923397509

Spec Sheet: S39750 Spec Sheet

Instructions: S39750 Instructions
