Direct AC Compatible
(Ballast Not Required)
17 / 35 Watts
2,380 / 4,550 Lumens
3000K/4000K/5000K
80 CRI
Damp Locations
Not Dimmable
280° Beam
Operating Temp
-30°F to 113°F
Medium Base
5 Year Warranty
Product Description
Satco selectable wattage (17/35 Watt) and selectable color temperature (3000K/4000K/5000K) LED A-Plus 28 with a medium base.
Product Features
HID Retrofit Applications
Perfect for commercial bollard fixtures, post-top lighting, high ceiling applications, and more.
Selectable Wattage & Color Temperature
The wattage and color temperature switches built into each lamp allows for flexibility both during and after installation.
Damp Location Rated
Suitable for damp locations.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
Thermal Management
Advanced heat sink design ensures long lifespan, less maintenance.
Specifications
| Lamp Type | A Series |
| Lamp Shape | AP28 |
| Lamp Base | Medium (E26) |
| Lamp Code | 35W/AP28/LED/CCT/100-277V/E26 |
| Ballasting Requirements | Ballast Bypass |
| Burning Position | Universal |
| Technology | LED |
| Housing Color | White |
| Finish | White |
| Lens Material | Polycarbonate (PC) |
| Lens Finish | Frost |
| Equivalent |
300W Incandescent 85W Fluorescent 100W-175W HID |
| Watts | 17 / 35W |
| Lumens | 2,380 / 4,550 Lumens |
| Color Temp |
Adjustable 3000K / 4000K / 5000K |
| Color Accuracy | 80 CRI |
| Beam Angle | 280° |
| Length | 6.26" |
| Diameter | 3.39" |
| Min Compartment Size |
Length: 6" Width: 6" Height: 8.5" |
| Weight | 1.11 lbs |
| Voltage | 100-277V AC |
| Operating Frequency | 50/60 Hz |
| Power Factor | >0.9 |
| Surge Protection | 2.5KV |
| Operating Temperature |
-30 to 113°F -22 to 45°C |
| Average Rated Hours | 50,000 |
| Dimmable | No |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| For Use Indoors | Yes |
| For Use Outdoors | Yes |
| Energy Star Approved | No |
| cULus Listed | cULus Listed - Damp Location Rated |
| FCC Compliant | Yes |
| RoHS Compliant | Yes |
| California Status | Lawful for sale in California |
| California T20 / T24 Rationale | Exempt - >2600 Lumens |
| Warranty | 5 Year Limited |
| UPC | 045923131622 |

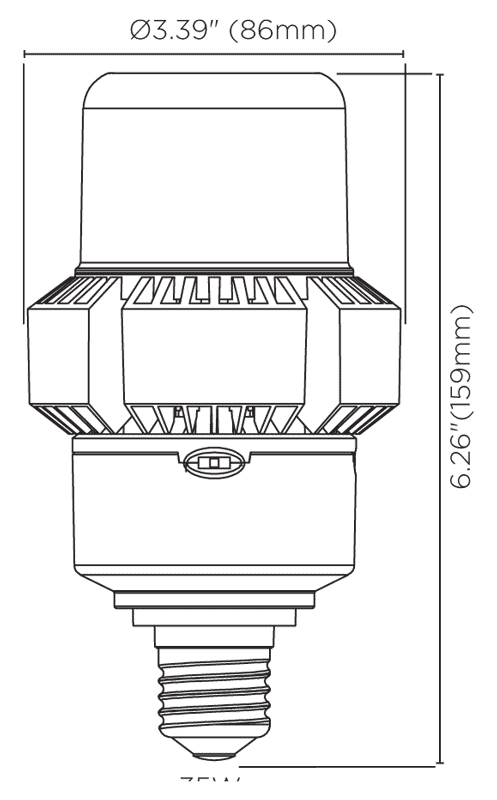

Dimensions
Spec Sheet:
S13162 Spec Sheet
