Direct AC Compatible
(Ballast Not Required)
20 Watts
2,400 / 2,700 / 2,600 Lumens
3000K/4000K/5000K
80 CRI
Damp Locations
Not Dimmable
280° Beam
Operating Temp
-30°F to 113°F
Medium Base
5 Year Warranty
Product Description

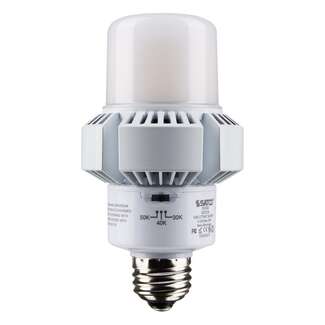

Satco 20 Watt selectable color temperature (3000K/4000K/5000K) LED A-Plus 28 with a medium base.
Product Features
HID Retrofit Applications
Perfect for commercial bollard fixtures, post-top lighting, high ceiling applications, and more.
Selectable Color Temperature
The color temperature switch built into each lamp allows for flexibility both during and after installation.
Damp Location Rated
Suitable for damp locations.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
Thermal Management
Advanced heat sink design ensures long lifespan, less maintenance.
Specifications
| Lamp Type | A Series |
| Lamp Shape | AP23 |
| Lamp Base | Medium (E26) |
| Lamp Code | 20W/AP23/LED/CCT/100-277V/E26 |
| Ballasting Requirements | Ballast Bypass |
| Burning Position | Universal |
| Technology | LED |
| Housing Color | White |
| Finish | White |
| Lens Material | Polycarbonate (PC) |
| Lens Finish | Frost |
| Equivalent |
150W Incandescent 55W Fluorescent 70W-100W HID |
| Watts | 20W |
| Lumens | 2,400 / 2,700 / 2,600 Lumens |
| Color Temp |
Adjustable 3000K / 4000K / 5000K |
| Color Accuracy | 80 CRI |
| Beam Angle | 280° |
| Length | 5.12" |
| Diameter | 2.83" |
| Min Compartment Size |
Length: 6" Width: 6" Height: 8.5" |
| Weight | 0.61 lbs |
| Voltage | 100-277V AC |
| Operating Frequency | 50/60 Hz |
| Power Factor | >0.9 |
| Surge Protection | 1KV |
| Operating Temperature |
-30 to 113°F -22 to 45°C |
| Average Rated Hours | 50,000 |
| Dimmable | No |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| For Use Indoors | Yes |
| For Use Outdoors | Yes |
| Energy Star Approved | No |
| cULus Listed | cULus Listed - Damp Location Rated |
| FCC Compliant | Yes |
| RoHS Compliant | Yes |
| California Status | Lawful for sale in California |
| California T20 / T24 Rationale | Non-Compliant - <82 CRI |
| Warranty | 5 Year Limited |
| UPC | 045923131608 |
Dimensions
Spec Sheet:
S13160 Spec Sheet
