Direct AC Compatible
(Ballast Not Required)
36 Watts
5,100 Lumens
4000K
(Cool White)
82 CRI
Emits no UV light
Damp Locations
Not Dimmable
230° Beam
Operating Temp
-4°F to 113°F
Mogul Extended Base
120-277V AC
5 Year Warranty
Product Description
Rab 36 watt 4000K omnidirectional PS30 LED with an EX39 mogul extended base.
Product Features
HID Replacement
Replacement for high output incandescent, metal halide, or high pressure sodium HID lamps.
HID Retrofit Applications
Integral driver enables lamp to be wired directly to line voltage. Must bypass ballast.
Compact Design
Ideal for post top, bollards, and outdoor corridor lighting.
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
Commercial Grade
Large metal heatsink for optimal heat dissipation.
Specifications
| Product Type | Commercial Bulb |
| Lamp Shape | Construction |
| Lamp Base | Mogul Extended (EX39) |
| Installation Type | If replacing HID Lamps must bypas the ballast |
| Enclosure Material | Die Cast Aluminum |
| Finish | White |
| Lens Finish | Frosted |
| Equivalent | 175W Metal Halide or High Pressure Sodium |
| Watts | 36W |
| Lumens | 5,100 Lumens |
| Efficacy | 141.7 lm/W |
| Color Temp |
4000K (Cool White) |
| Color Accuracy | 82 CRI |
| Beam Angle | 230° |
| Diameter | 3-3/4" |
| Weight | 6 lbs |
| Input Voltage | 120-277V AC |
| Operating Frequency | 60 Hz |
| Power Factor | >0.9 |
| THD | <20% |
| Operating Temperature |
-4 to 113°F -20 to 45°C |
| L70 Lifespan |
50,000 Hours LED lifespan based on IES LM-70 results |
| Emits No UV Light | Yes |
| Dimmable | No |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| DLC Qualified | Yes |
| UL Listed | Yes |
| FCC Compliant | Yes (Part 15) |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| Warranty | 5 Year |

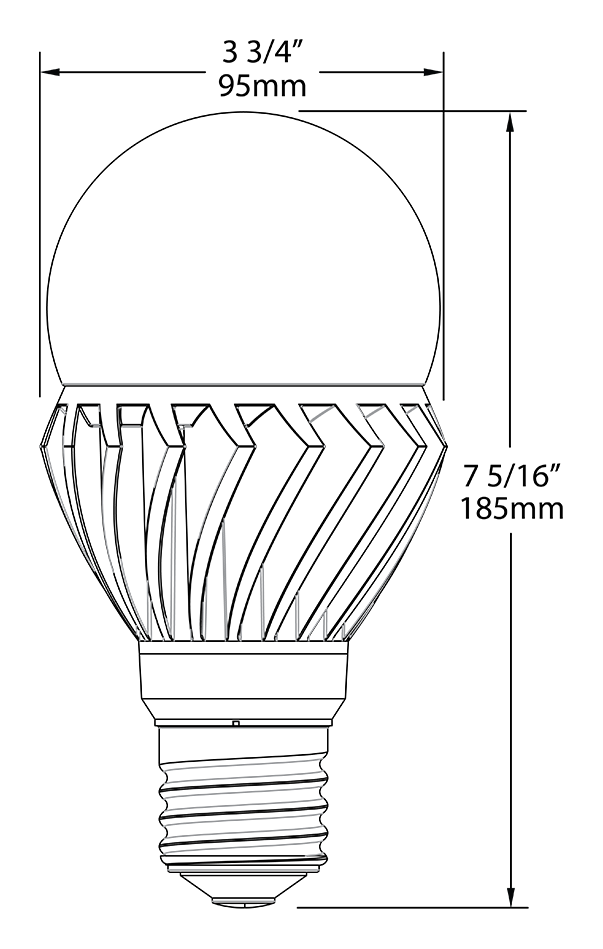

Dimensions
Spec Sheet:
PS30-36-EX39-840-ND 120-277V Spec Sheet
