Direct AC Compatible
(Ballast Not Required)
24 Watts
3,050 Lumens
4000K
(Cool White)
80+ CRI
Emits no UV light
Damp Locations
Not Dimmable
Operating Temp
-4°F to 113°F
Mogul Extended Base
5 Year Warranty
Product Description
Rab 23.5 watt 4000K omnidirectional A23 LED with an EX39 mogul extended base.
Product Features
HID Replacement
Replacement for high output incandescent, metal halide, or high pressure sodium HID lamps.
HID Retrofit Applications
Integral driver enables lamp to be wired directly to line voltage. Must bypass ballast.
Compact Design
Ideal for post top, bollards, and outdoor corridor lighting.
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Consistent Fixture-to-Fixture LED Color
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
Designed to meet DLC 5 requirements.
DLC Model Number: A10024
DLC Product Code: PTDB5TA8.
Commercial Grade
Large metal heatsink for optimal heat dissipation.
Specifications
| Product Type | HID Replacement |
| Lamp Shape | A23 |
| Lamp Base | Mogul Extended (EX39) |
| Installation Type | Direct AC Compatible (Type B) |
| Ballasting Requirements | No Ballast - Wire 120-277V AC Direct Only |
| Technology | LED |
| Housing Material | Polycarbonate & Metal heat sink |
| Finish | White |
| Lens Finish | Frosted |
| Lamp Base Material | Die-casting |
| Equivalent | 200W Metal Halide |
| Watts | 24W |
| Lumens | 3,050 Lumens |
| Efficacy | 127 Lm/W |
| Color Temp |
4000K (Cool White) |
| Color Accuracy | >80 CRI |
| CRI R9 | High color performance with R9 no less than 0 |
| Diameter | 2-7/8" |
| Weight | 0.8 lbs |
| Input Voltage | 120-277V AC |
| Operating Frequency | 50/60 Hz |
| Power Factor | >0.9 |
| THD | ≤25% |
| Operating Temperature |
-4 to 113°F -20 to 45°C |
| L70 Lifespan | 50,000 Hours |
| Emits No UV Light | Yes |
| Dimmable | No |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| DLC Listed |
Yes Designed to meet DLC 5 requirements. DLC Model Number: A10024 DLC Product Code: PTDB5TA8 |
| UL Listed | Yes |
| UL Classified | Yes |
| FCC Compliant | Yes (Part 15) |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| California Status | Not lawful for Sales in California |
| Warranty | 5 Year |
| UPC | 019813833941 |

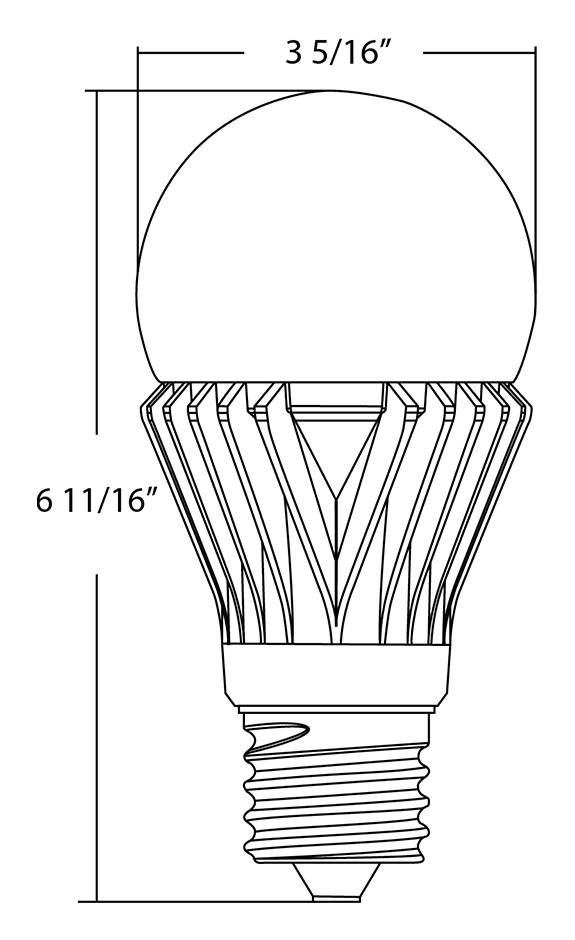

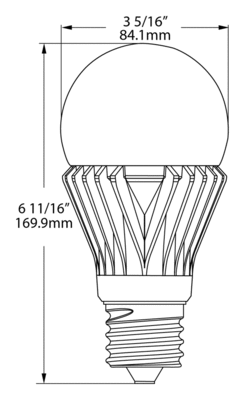

Dimensions
Spec Sheet:
A23-24-EX39-840-ND 120-277V Spec Sheet
