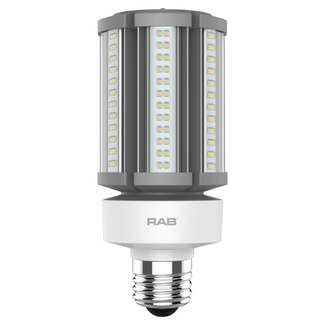

RAB 36W 5000K High Lumen Post Top LED with Medium Base

Product Description

Rab 36 Watt 5000K LED post top HID replacement with a medium base.



Product Features

HID Replacement

Energy efficient LED replacement for traditional metal halide or high pressure sodium HID Lamps.

Ballast Bypass

Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast.

Damp Location Rated

Suitable for damp locations.

Enclosed Fixture Rated

May be used in both enclosed and open fixtures.

4kV Surge Protection

Built-in surge protection defends against momentary voltage surges up to 4kV.

80 CRI

Ideal for general lighting applications.

Overheat Sensor

When the internal overheat sensor engages it will automatically reduce output to 70% of the rated wattage until the sensor cools, and will then light up again to 100%.



Specifications

Product Type	HID
Lamp Shape	Post Top
Lamp Base	Medium (E26)
Installation Type	Type B, Ballast Bypass
Installation Orientation	Universal Installation
Finish	White
Equivalent	150W HID
Watts	36W
Lumens	5,400 Lumens
Efficacy	150 lm/W
Color Temp	5000K (Daylight)
Color Accuracy	80 CRI
Beam Angle	360°
Bare Lamp Illuminated Length	3-15/16"
Length	7-13/16"
Diameter	3-3/8"
Minimum Compartment Size	Length: 8" Width: 8" Height: 11"
Weight	1.4 lbs
Input Voltage	100-277V AC
Operating Frequency	50/60Hz
Power Factor	0.9
THDi	<20%
Flicker	<30%
Operating Temperature	-22 to 140°F -30 to 60°C
L70 Lifespan	50,000 Hours
Dimmable	No
Damp Location Rated	Yes
Enclosed Fixture Rated	Yes
For Use Outdoors in Open Fixtures	Yes
For Use in Emergency Fixtures	No
UL Listed	Yes
UL Classified	Yes
FCC Compliant	Yes
RoHS Compliant	Yes
Mercury Free	Yes
CEC Status	Lawful for sale in California
UPC	019813749143

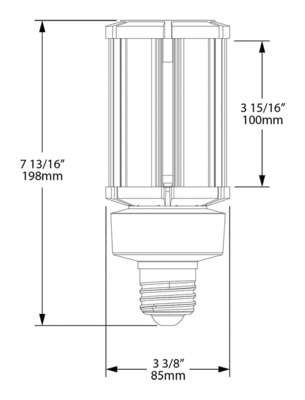

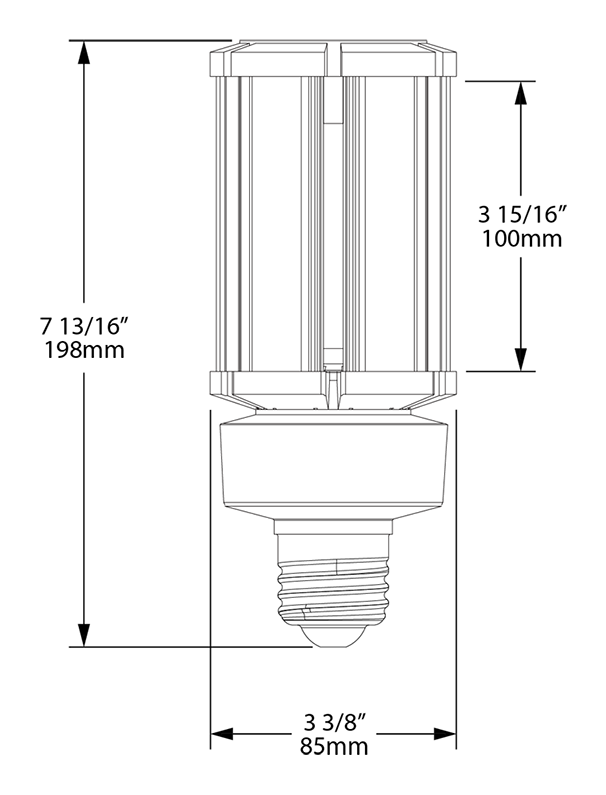

Dimensions

Spec Sheet: HID-36-E26-850-BYP-PT Spec Sheet

Instructions: Installation Instructions
