Direct AC Compatible
(Ballast Not Required)
45 / 54 / 63 Watts
6,075 - 6,525 Lumens
(At 45 Watts)
7,290 - 7,830 Lumens
(At 54 Watts)
8,505 - 9,135 Lumens
(At 63 Watts)
3000K/4000K/5000K
80+ CRI
Emits no UV light
Damp Locations
IP64 Rated
Damp Locations
Dimmable
(Via Optional Accessory Only)
360° Beam
Operating Temp
-22°F to 140°F
Mogul Extended Base
5 Year Warranty
Product Description

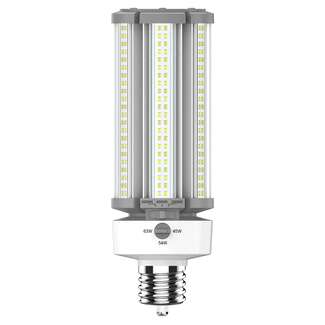

RAB selectable wattage (45/54/63 Watt) and selectable color temperature (3000K/4000K/5000K) dimmable ballast by-pass post top LED HID replacement with an extended mogul base.
Product Features
HID Replacement
Replaces traditional metal halide or high pressure sodium HID lamps.
Direct AC Compatible (Type B)
Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast.
Integrated Sensor Port - 5-Pin
Add the Lightcloud Blue 5-pin plug-in controller with optional sensor to connect to the Lightcloud Blue Bluetooth mesh wireless network lighting control system.
Selectable Wattage & Color Temperature
Field adjustable wattage and color temperature allows for flexibility both during and after installation.
IP64 Rating
Ingress Protection rating of IP64 for water and dust resistant.
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Consistent Fixture-to-Fixture LED Color
6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
4kV Surge Protection
Built-in surge protection defends against momentary voltage surges up to 4kV.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified products list and is eligible for rebates from DLC Member Utilities.
Designed to meet DLC 5.1 requirements.
DLC product code: PNEUJU9B.
Specifications
| Product Type | HID Replacement |
| Lamp Shape | Post top (sensor) |
| Lamp Base | Mogul Extended (EX39) |
| Installation Type | UL Type B, Ballast Bypass |
| Ballasting Requirements | No Ballast - Wire 100-277V AC Direct Only |
| Installation Orientation | Vertical and Horizontal |
| Technology | LED |
| Housing Material | Polycarbonate |
| Finish | Clear |
| Endcap Material | Metal |
| Equivalent | 175W/200W/250W Metal Halide |
| Watts | 45 / 54 / 63W |
| Lumen Output |
45W: 3000K: 6,075 Lumens 4000K: 6,525 Lumens 5000K: 6,300 Lumens 54W: 3000K: 7,290 Lumens 4000K: 7,830 Lumens 5000K: 7,560 Lumens 63W: 3000K: 8,505 Lumens 4000K: 9,135 Lumens 5000K: 8,820 Lumens |
| Efficacy |
45W / 54W / 63W: 3000K: 135 Lm/W 4000K: 145 Lm/W 5000K: 140 Lm/W |
| Color Temp |
Adjustable 3000K / 4000K / 5000K |
| Color Accuracy | ≥80 CRI |
| Beam Angle | 360° |
| CRI R9 | High color performance with R9 no less than 0 |
| Bare Lamp Illuminated Length | 5-11/16" |
| Length | 10-3/16" |
| Diameter | 3-3/8" |
| Weight | 2.0 lbs |
| Input Voltage | 100-277V AC |
| Operating Frequency | 50/60Hz |
| Driver |
Type:
Constant Current
120V:
541 mA
208V:
321 mA
240V:
285 mA
277V:
227 mA
|
| Power Factor | ≥0.9 |
| THD | ≤20% |
| Flicker | <30% |
| Surge Protection | 4kV |
| Operating Temperature |
-22 to 140°F -30 to 60°C |
| L70 Lifespan |
50,000 Hours LED lifespan based on IES LM-70 results |
| Emits No UV Light | Yes |
| Dimmable |
Yes, via the Lightcloud Blue mobile app only. Do not use with a standard dimmer or dimming control. |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| DLC Listed |
Yes Designed to meet DLC 5.1 requirements. DLC Product Code: PNEUJU9B |
| DLC Model Number | H20039(HIDFA-63S-EX39-8CCT-BYP/5SP) |
| IP64 Rating | Yes |
| UL Listed | Yes |
| UL Classified | Yes |
| FCC Compliant | Yes (Part 15) |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| California Status | Lawful for Sales in California |
| Warranty | 5 Year |
| UPC | 192552026970 |
Dimensions
Spec Sheet:
HIDFA-63S-EX39-8CCT-BYP/5SP Spec Sheet
Instructions:
Installation Instructions
