Direct AC Compatible
(Ballast Not Required)
54 Watts
7,500 Lumens
5000K
(Daylight)
80 CRI
Emits no UV light
Damp Locations
IP64 Rated
Damp Locations
Not Dimmable
300° Beam
Operating Temp
-4°F to 113°F
Mogul Extended Base
5 Year Warranty
Product Description

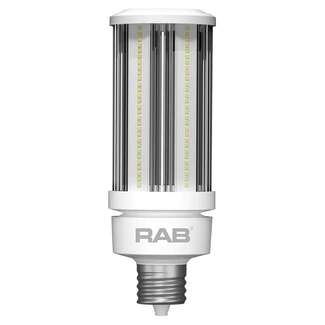

RAB 54 watt 5000K non-dimmable UL Type B (direct AC compatible/ballast by-pass) post top LED HID replacement with a mogul extended base.
Product Features
HID Replacement
Energy efficient LED replacement for traditional metal halide or high pressure sodium HID Lamps.
Direct AC Compatible (Type B)
Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast.
IP64 Rating
Ingress Protection rating of IP64 for water and dust resistant.
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
4kV Surge Protection
Built-in surge protection defends against momentary voltage surges up to 4kV.
Specifications
| Brand Name | RAB |
| Product Type | HID Replacement |
| Lamp Shape | Post Top |
| Lamp Base | Mogul Extended (EX39) |
| Installation Type |
UL Type B: Direct AC Compatible (Type B - No Ballast) |
| Ballasting Requirements | No Ballast - Wire 100-277V AC Direct Only |
| Burning Position | Universal |
| Technology | LED |
| Housing Material | Polycarbonate & Metal heat sink |
| Finish | White |
| Equivalent | 200W |
| Watts | 54W |
| Lumens | 7,500 Lumens |
| Efficacy | 135 Lm/W |
| Color Temp |
5000K (Daylight) |
| Color Accuracy | 80 CRI |
| Beam Angle | 300° |
| Height | 9-9/16" |
| Diameter | 3-3/8" |
| Weight | 1.5 lbs |
| Input Voltage | 100-277V AC |
| Operating Frequency | 60 Hz |
| Power Factor | >0.9 |
| Operating Temperature |
-4 to 113°F -20 to 45°C |
| L70 Lifespan |
50,000 Hours LED lifespan based on IES LM-70 results |
| Emits No UV Light | Yes |
| Dimmable | No |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| Certification Model Number | H10044(HID-50-EX39-850-BYP-PT-ECO) |
| DLC Listed | This product does not meet the Design Lights Consortium (DLC) requirements. |
| IP64 Rating | Yes |
| UL Listed | Yes |
| FCC Compliant | Yes (Part 15B) |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| Warranty | 5 Year Limited |
| UPC | 192552000475 |

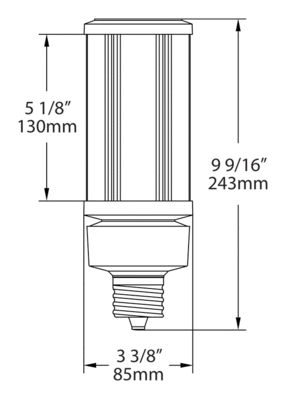

Dimensions
Spec Sheet:
HID-50-EX39-850-BYP-PT-ECO Spec Sheet
Instructions:
Installation Instructions
