80 Watts
10,800 Lumens
4000K
(Cool White)
80 CRI
100-277V AC
(Ballast Not Required)
Damp Locations
Not Dimmable
360° Beam
Operating Temp
-22°F to 140°F
Mogul Extended Base
5 Year Warranty
Product Description
Rab 80 Watt 4000K LED post top HID replacement with a mogul extended base.
Product Features
HID Replacement
Energy efficient LED replacement for traditional metal halide or high pressure sodium HID Lamps.
Ballast Bypass
Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast.
Integrated Sensor Port
Lamp includes on board low-voltage AUX port for passive infrared, microwave, or daylight photocell sensor accessories.
Damp Location Rated
Suitable for damp locations.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
4kV Surge Protection
Built-in surge protection defends against momentary voltage surges up to 4kV.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Model Number: HID-80-EX39-840-BYP-PT
DLC Product Code: PLZ1631OLL04.
80 CRI
Ideal for general lighting applications.
Overheat Sensor
When the internal overheat sensor engages it will automatically reduce output to 70% of the rated wattage until the sensor cools, and will then light up again to 100%.
Specifications
| Product Type | HID |
| Lamp Shape | Post Top |
| Lamp Base | Mogul Extended (EX39) |
| Installation Type | Type B, Ballast Bypass |
| Installation Orientation | For Vertical Installation Only |
| Finish | White |
| Equivalent | 320W HID |
| Watts | 80W |
| Lumens | 10,800 Lumens |
| Efficacy | 135 lm/W |
| Color Temp |
4000K (Cool White) |
| Color Accuracy | 80 CRI |
| Beam Angle | 360° |
| Bare Lamp Illuminated Length | 4-5/16" |
| Length | 9-5/8" |
| Diameter | 5-1/8" |
| Minimum Compartment Size |
Length: 7.9" Width: 7.9" Height: 10.6" |
| Weight | 3.6 lbs |
| Input Voltage | 100-277V AC |
| Operating Frequency | 50/60Hz |
| Input Current | 120V - 0.89mA |
| Power Factor | >0.9 |
| THDi | <20% |
| Flicker | <30% |
| Operating Temperature |
-22 to 140°F -30 to 60°C |
| L70 Lifespan | 50,000 Hours |
| Dimmable | No |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| For Use Outdoors in Open Fixtures | Yes |
| For Use in Emergency Fixtures | No |
| DLC Listed |
Yes DLC Model Number: HID-80-EX39-840-BYP-PT DLC Product Code: PLZ1631OLL04 |
| UL Listed | Yes |
| UL Classified | Yes |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| CEC Status | Lawful for sale in California |
| Warranty | 5 Year |
| UPC | 019813510293 |

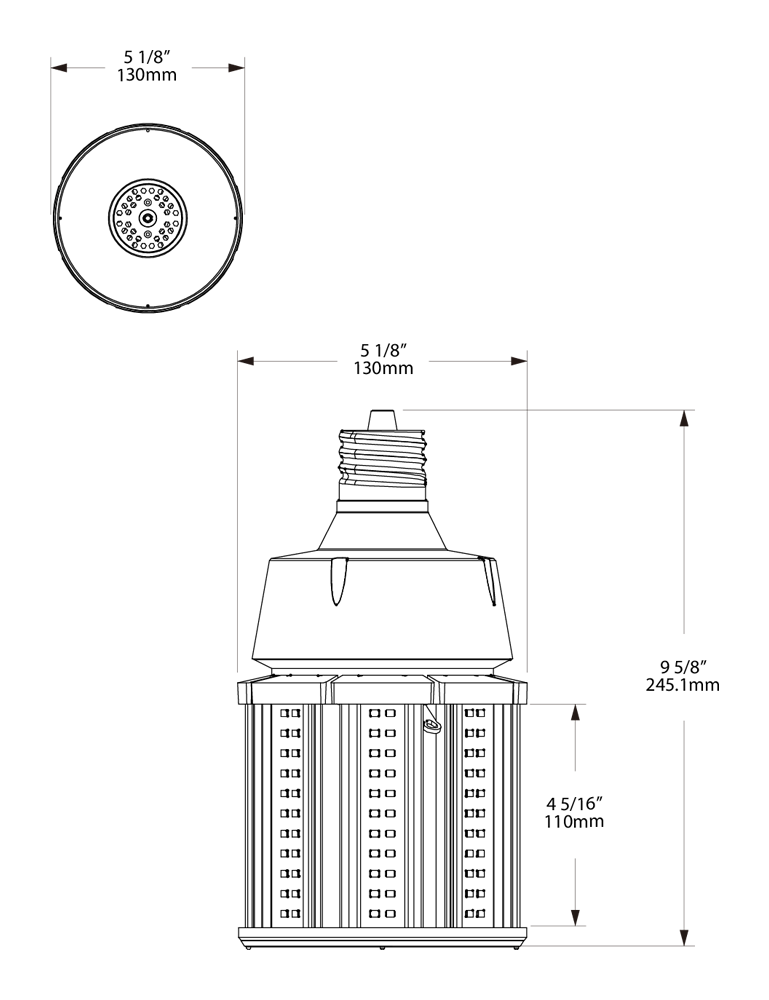

Dimensions
Spec Sheet:
HID-80-EX39-840-BYP-PT-G2 Spec Sheet
Instructions:
Installation Instructions
