RAB 6/12/18 Watt Selectable Post Top LED with Medium Base

Product Description

Rab selectable wattage (6/12/18 Watt) selectable ballast by-pass post top LED HID replacement with a medium base.



Product Features

HID Replacement

Replaces traditional metal halide or high pressure sodium HID lamps.

Direct AC Compatible (Type B)

Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast.

Selectable Wattage & Color Temperature

Field adjustable wattage and color temperature allows for flexibility both during and after installation.

Damp Location Rated

Suitable for damp locations.

Enclosed Fixture Rated

May be used in both enclosed and open fixtures.

4kV Surge Protection

Built-in surge protection defends against momentary voltage surges up to 4kV.



Specifications

Product Type	HID Replacement
Lamp Shape	Post Top
Lamp Base	Medium (E26)
Installation Type	Type B, Ballast Bypass
Installation Orientation	Vertical and Horizontal
Technology	LED
Housing Material	Polycarbonate
Endcap Material	Metal
Finish	White
Equivalent	75W MH (Metal-Halide) High Pressure Sodium
Watts	6 / 12 / 18W
Lumens	870 / 1,740 / 2,610 Lumens
Efficacy	145 lm/W
Color Temp	Adjustable 3000K / 4000K / 5000K
Color Accuracy	>80 CRI
Beam Angle	360°
Bare Lamp Illuminated Length	2-3/4"
Length	6-5/16"
Diameter	2-5/16"
Weight	0.6 lbs
Input Voltage	100-277V AC
Operating Frequency	50/60Hz
Power Factor	>0.9
THD	<20%
Flicker	<30%
Operating Temperature	-22 to 140°F -30 to 60°C
L70 Lifespan	50,000 Hours LED lifespan based on IES LM-70 results
Dimmable	Yes
Damp Location Rated	Yes
Enclosed Fixture Rated	Yes
UL Listed	Yes Suitable for damp locations
FCC Compliant	Yes (Part 15)
Mercury Free	Yes
Warranty	5 Year
UPC	192552005258

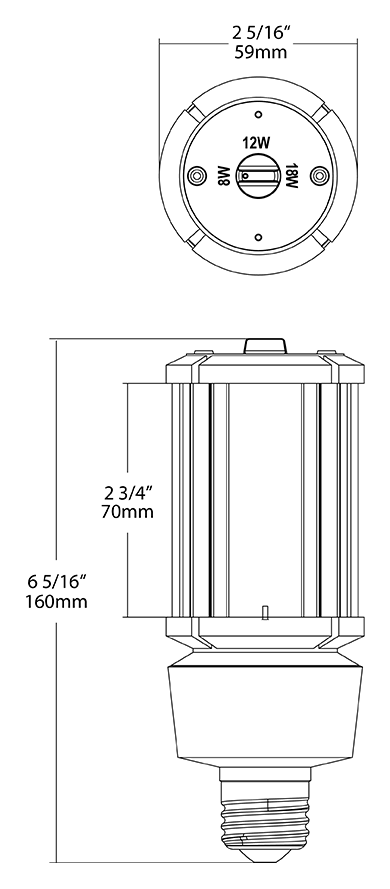

Dimensions

Spec Sheet: HIDFA-18S-E26-850-BYP Spec Sheet

Instructions: Installation Instructions
