Direct AC Compatible
(Ballast Not Required)
110 Watts
15,400 / 16,500 / 15,950 Lumens
3000K/4000K/5000K
80+ CRI
Emits no UV light
Damp Locations
IP64 Rated
Damp Locations
Dimmable
Operating Temp
-22°F to 140°F
Mogul Extended Base
Product Description

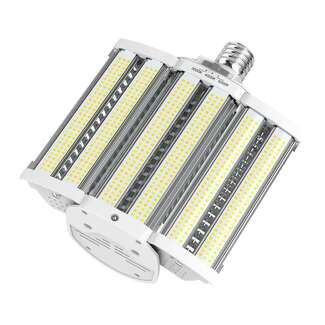

RAB 110 watt selectable color temperature (3000K/4000K/5000K) dimmable UL Type B (direct AC compatible/ballast by-pass) shoebox LED HID replacement with a mogul extended base.
Product Features
HID Replacement
Replaces traditional metal halide or high pressure sodium HID lamps.
Direct AC Compatible (Type B)
Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast.
Integrated Sensor Port
Lamp includes on board AUX port for integrating lamp level sensor accessories.
Selectable Color Temperature
Field adjustable color temperature allows for flexibility both during and after installation.
IP64 Rating
Ingress Protection rating of IP64 for water and dust resistant.
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
Consistent Fixture-to-Fixture LED Color
6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
Specifications
| Brand Name | RAB |
| Product Type | HID Replacement |
| Lamp Shape | Shoebox |
| Lamp Base | Mogul Extended (EX39) |
| Installation Type |
UL Type B: Direct AC Compatible (Type B - No Ballast) |
| Ballasting Requirements | No Ballast - Wire 100-277V AC Direct Only |
| Installation Orientation | Horizontal |
| Technology | LED |
| Sensor Port | 5-Pin Port |
| Housing Material | Polycarbonate |
| Finish | Clear |
| Lamp Base Material | Metal |
| Accessories |
XFMR200-480-277: Transformer 200W 480V SP10KV: 10 kV Surge protector |
| Equivalent | 400W MH (Metal-Halide) |
| Watts | 110W |
| Lumens | 15,400 / 16,500 / 15,950 Lumens |
| Efficacy | 140/150/145 Lm/W |
| Color Temp |
Adjustable 3000K / 4000K / 5000K |
| Color Accuracy | ≥80 CRI |
| CRI R9 | High color performance with R9 no greater than 0 |
| Beam Angle | 180° |
| Weight | 4.2 lbs |
| Input Voltage | 100-277V AC |
| Operating Frequency | 50/60 Hz |
| Input Current |
120V: 945mA 240V: 504mA 277V: 441mA |
| Power Factor | ≥0.9 |
| THD | ≤20% |
| Flicker | <30% |
| Surge Protection | 4kV |
| Operating Temperature |
-22 to 140°F -30 to 60°C |
| L70 Lifespan |
50,000 Hours LED lifespan based on IES LM-70 results |
| Emits No UV Light | Yes |
| Dimmable | Yes |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| Certification Model Number | H20045(HIDFA-110-H-EX39-8CCT-BYP/5SP) |
| Energy Star Approved |
No No Energy Star category for this lamp to qualify under |
| IP64 Rating | Yes |
| UL Listed | Yes |
| UL Classified | Yes |
| FCC Compliant | Yes (Part 15B) |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| California Status | Lawful for Sale in California |
| California Title 20 | Not compliant |
| California Title 24 | Not Compliant |
| UPC | 192552028707 |
Dimensions
Spec Sheet:
HIDFA-110-H-EX39-8CCT-BYP/5SP Spec Sheet
Instructions:
Installation Instructions
Compatibility:
Sensor Compatibility List
