RAB 5/10/20 Watt Selectable CCT Dimmable Wall Pack LED

Product Description

Rab selectable wattage (5/10/20 Watt) and selectable color temperature (3000K/4000K/5000K) dimmable LED HID replacement wallpack with a E26 base.



Product Features

HID Replacement

Replaces traditional metal halide or high pressure sodium HID lamps.

Direct AC Compatible (Type B)

Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast.

Selectable Wattage & Color Temperature

Field adjustable wattage and color temperature allows for flexibility both during and after installation.

Damp Location Rated

Suitable for damp locations.

Environmentally Friendly

Mercury and UV free. RoHS-compliant components.

Enclosed Fixture Rated

May be used in both enclosed and open fixtures.

4kV Surge Protection

Built-in surge protection defends against momentary voltage surges up to 4kV.

80 CRI

Ideal for general lighting applications.



Specifications

Product Type	HID Replacement
Lamp Shape	Wall Pack
Lamp Base	Medium (E26)
Installation Type	Type B, Ballast Bypass
Installation Orientation	Horizontal
Technology	LED
Housing Material	Polycarbonate
Endcap Material	Metal
Finish	White
Equivalent	100W MH (Metal-Halide) High Pressure Sodium
Watts	5 / 10 / 20W
Lumens	800 / 1,600 / 3,200 Lumens
Efficacy	160 lm/W
Color Temp	Adjustable 3000K / 4000K / 5000K
Color Accuracy	>80 CRI
Beam Angle	180°
Bare Lamp Illuminated Length	3"
Length	5-7/16"
Diameter	3-5/8"
Weight	1.3 lbs
Input Voltage	100-277V AC
Operating Frequency	50/60Hz
Power Factor	>0.9
THD	<20%
Flicker	<30%
Operating Temperature	-22 to 140°F -30 to 60°C
L70 Lifespan	50,000 Hours LED lifespan based on IES LM-70 results
Dimmable	Yes
Damp Location Rated	Yes
Enclosed Fixture Rated	Yes
IP64 Rating	Yes
UL Listed	Yes Suitable for damp locations
FCC Compliant	Yes (Part 15)
RoHS Compliant	Yes
Mercury Free	Yes
Warranty	5 Year
UPC	192552005104

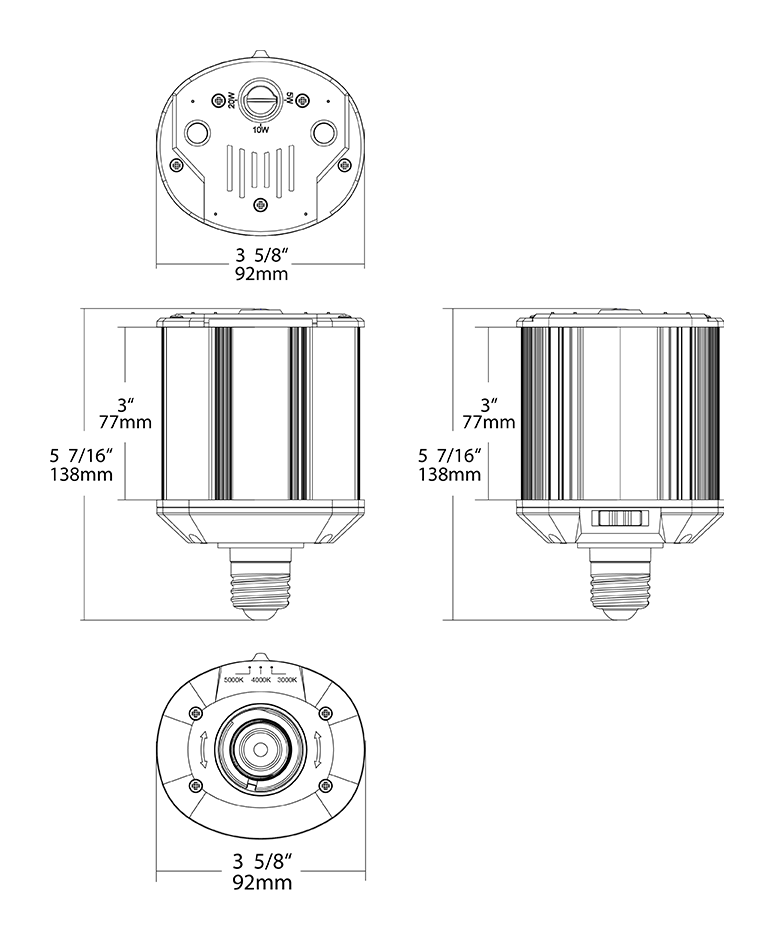

Dimensions

Spec Sheet: HIDFA-20S-H-E26-8CCT-BYP Spec Sheet

Instructions: Installation Instructions
