Direct AC Capable
(Ballast Not Required)
60 Watts
9,300 Lumens
5000K
(Daylight)
80 CRI
Damp Locations
Not Dimmable
180° Beam
Operating Temp
-22°F to 140°F
Mogul Extended Base
Product Description
RAB 60 watt 5000K LED wall pack light bulb with a mogul base.
Product Features
HID Replacement
Energy efficient LED replacement for traditional metal halide or high pressure sodium HID Lamps.
Ideal for Wall Pack Retrofits
The HID LED is optimized for horizontal use applications with directional light output and rotatable base.
Ballast Bypass
Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast.
Damp Location Rated
Suitable for damp locations.
Enclosed Fixture Rated
May be used in both enclosed and open fixtures.
4kV Surge Protection
Built-in surge protection defends against momentary voltage surges up to 4kV.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: PLFRALVVSM4O.
80 CRI
Ideal for general lighting applications.
Overheat Sensor
When the internal overheat sensor engages it will automatically reduce output to 70% of the rated wattage until the sensor cools, and will then light up again to 100%.
Specifications
| Product Type | HID |
| Lamp Shape | Wall Pack |
| Lamp Base | Mogul Extended (EX39) |
| Installation Type | Type B, Ballast Bypass |
| Installation Orientation | Universal Installation |
| Equivalent | 250W HID |
| Watts | 60W |
| Lumens | 9,300 Lumens |
| Efficacy | 155 lm/W |
| Color Temp |
5000K (Daylight) |
| Color Accuracy | 80 CRI |
| Beam Angle | 180° |
| Bare Lamp Illuminated Length | 7-9/16" |
| Length | 10-11/16" |
| Diameter | 3-5/8" |
| Minimum Compartment Size |
Length: 7.9" Width: 7.9" Height: 11.8" |
| Weight | 2.2 lbs |
| Input Voltage | 100-277V AC |
| Operating Frequency | 50/60Hz |
| Power Factor | 0.9 |
| THDi | <20% |
| Flicker | <30% |
| Operating Temperature |
-22 to 140°F -30 to 60°C |
| L70 Lifespan | 50,000 Hours |
| Dimmable | No |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | Yes |
| For Use Outdoors in Open Fixtures | Yes |
| For Use in Emergency Fixtures | No |
| DLC Listed |
Yes DLC Product Code: PLFRALVVSM4O |
| UL Listed | Yes |
| UL Classified | Yes |
| Mercury Free | Yes |
| CEC Status | Lawful for sale in California |
| UPC | 019813748986 |

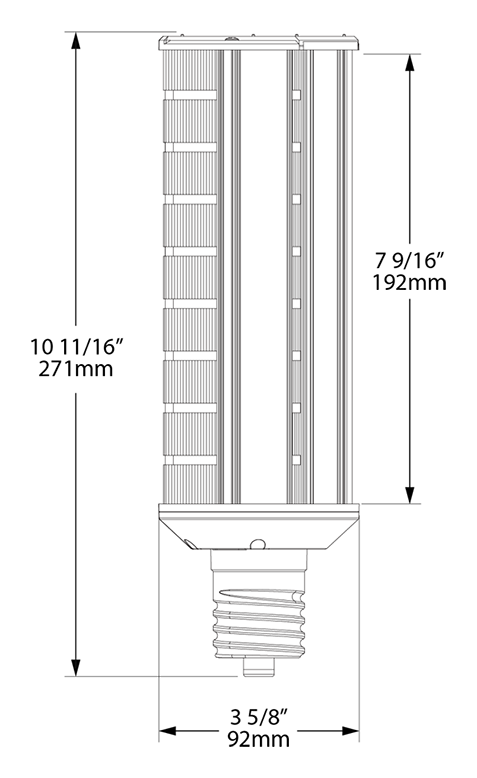

Dimensions
Spec Sheet:
HID-60-H-EX39-850-BYP-WP Spec Sheet
Instructions:
Installation Instructions
