16 Watts
1,000 Lumens
3000K
(Warm White)
90 CRI
Damp Locations
Dimmable
(TRIAC Compatible)
110° Beam
Operating Temp
-22°F to 104°F
120V AC
5 Year Warranty
Product Description
RAB 7" 16 watt 3000K round disk LED flush mount light fixture with bronze finish.
Product Features
Below Ceiling Installation
Simple and quick installation from below the ceiling.
New Construction or Retrofit Applications
Can be retrofitted to existing downlight housings with optional accessory.
Low Profile
Super low profile backlit LED with driverless design.
Dimmable
Compatible with most common dimmer models. Dimmable down to 5%.
Damp Location Rated
Suitable for damp locations.
90 CRI
Produces rich and vibrant colors.
Installation
Installs on standard 4" and 6" junction boxes.
Specifications
| Fixture Type | Surface & Flush Mounts |
| Fixture Shape | Round |
| LEDs | Backlit LED Technology |
| Material | Aluminum |
| Finish | Bronze |
| Trim | Smooth Trim |
| Mounting | Surface mount |
| Watts | 16W |
| Lumens | 1,000 Lumens |
| Efficacy | 62.5 lm/W |
| Color Temp |
3000K (Warm White) |
| Color Accuracy | 90 CRI |
| CRI R9 |
R9 greater than 50 (High color performance) |
| Beam Angle | 110° |
| Diameter | 7-3/4" |
| Weight | 0.5 lbs |
| Input Voltage | 120V AC |
| Operating Frequency | 60Hz |
| Driver |
Type:
Constant Current
120V:
0.17A
|
| Dimming Driver |
TRIAC Compatible Dimming as low as 5% |
| Power Factor | 0.9 |
| Flicker | <30% |
| Operating Temperature |
-22 to 104°F -30 to 40°C |
| L70 Lifespan |
50,000 Hours LED lifespan based on IES LM-70 results |
| Dimmable | Yes - TRIAC |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | No |
| Energy Star Approved |
Energy Star Version 2.2 Certified Energy Star ID: 2387953 |
| UL Listed |
Yes Suitable for damp locations |
| UL Classified | Yes |
| IC Rated | Suitable for direct contact with insulation |
| Warranty | 5 Year |
| UPC | 192552007535 |

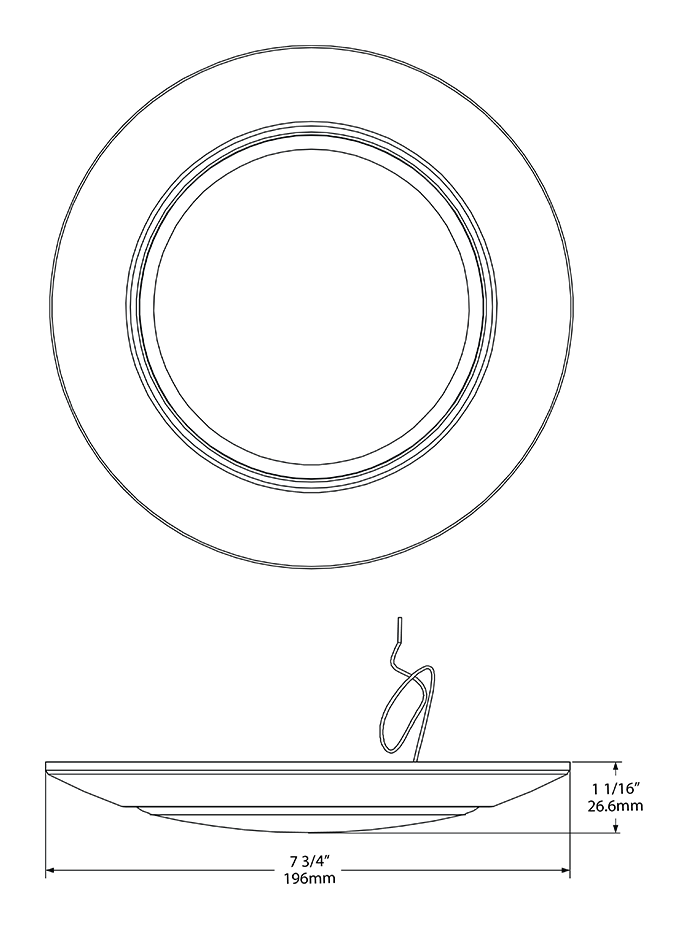

Dimensions
Spec Sheet:
DSK34-6R16930120BRS Spec Sheet
Instructions:
Installation Instructions
