RAB 10" 22W 2700K-5000K Dimmable LED Flush Mount Fixture

Product Description

RAB 10" 22 watt selectable color temperature (2700K/3000K/4000K/5000K) round disk LED flush mount light fixture with white finish. Ideal for use in a variety of applications including hallways, bathrooms, stairways, closets, and canopies.



Product Features

New Construction or Retrofit Applications

Can be retrofitted to existing downlight housings with included medium base socket adapter.

Dimmable

down to 5% on compatible dimmers, see Dimmer Compatibility List.

Wet Location Rated

Suitable for wet locations.

90 CRI

Produces rich and vibrant colors.

Installation

Installs on standard junction boxes.



Specifications

Product Type	Disk Surface Mount / Retrofit
Lamp Shape	Round
Technology	LED
Lamp Base	Medium (E26)
Material	Thermoplastic
Finish	White
Lens Finish	Frosted
Trim	Smooth Trim
Mounting	Surface and recessed mount
Size	8"
Watts	22W
Lumens	2,000 Lumens
Efficacy	90.9 lm/W
Color Temp	Adjustable 2700K / 3000K / 3500K / 4000K / 5000K
Color Accuracy	90 CRI
CRI R9	R9 greater than or equal to 50 (High color performance)
Diameter	9-7/16"
Weight	1.4 lbs
Input Voltage	120V AC
Operating Frequency	60Hz
Driver	Type: Constant Current 120V: 0.20A
Dimming Driver	TRIAC Compatible Dimming as low as 10%.
Power Factor	≥0.9
THD	≤20%
Flicker	≤30%
Operating Temperature	-4 to 104°F -20 to 40°C
L70 Lifespan	50,000 Hours LED lifespan based on IES LM-70 results
Dimmable	Yes - TRIAC
Wet Location Rated	Yes
For Use Indoors	Yes
For Use Outdoors	Yes
Energy Star Approved	Energy Star Version 2.2 Certified Energy Star ID: 2389594
UL Listed	Yes Suitable for wet locations
UL Classified	Yes
NEC Compliant	Suitable for use in closets.
California Title 20	Yes
California Title 24	Yes, Complies with Title 24 Appendix JA8
Warranty	5 Year
UPC	192552014618

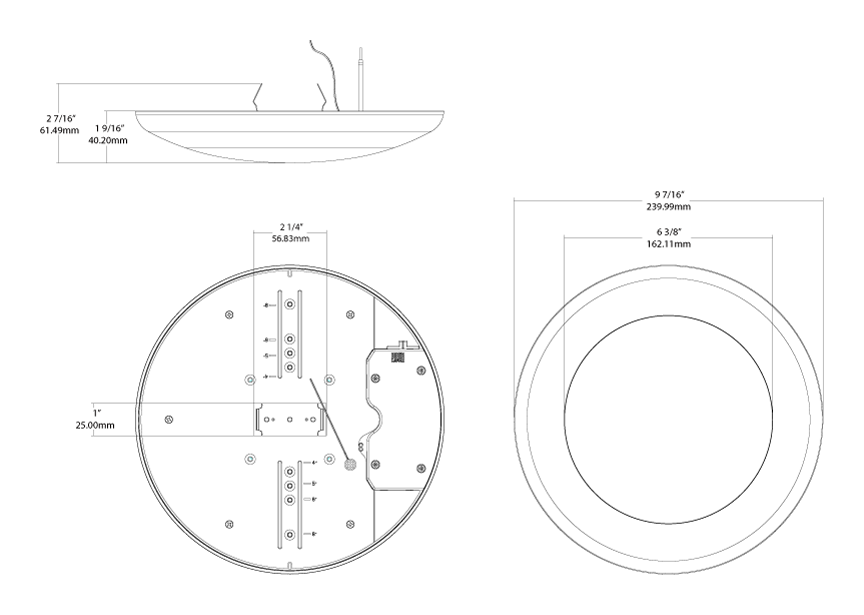

Dimensions

Spec Sheet: DSK8R229FA120WS Spec Sheet

Instructions: Installation Instructions
