12 Watts
852 Lumens
3500K
(Neutral White)
90 CRI
Emits no UV light
Damp Locations
Dimmable
(TRIAC/ELV Compatible)
110° Beam
Operating Temp
-22°F to 104°F
120V AC
5 Year Warranty
Product Description
RAB 6" 12 watt 3500K round disk LED flush mount light fixture with white finish.
Product Features
Below Ceiling Installation
Simple and quick installation from below the ceiling.
New Construction or Retrofit Applications
Can be retrofitted to existing downlight housings with optional accessory.
Low Profile
Super low profile backlit LED with driverless design.
Dimmable
Compatible with most common dimmer models. Dimmable down to 5%.
Damp Location Rated
Suitable for damp locations.
Environmentally Friendly
Mercury and UV free. RoHS-compliant components.
90 CRI
Produces rich and vibrant colors.
Installation
Installs on standard 4" and 6" junction boxes.
Suitable for installation in many 3-1/2" and 4" octagon and round electrical junction boxes.
Compatible with compact/pancake junction boxes.
Specifications
| Fixture Type | Disk Surface Mount / Retrofit |
| Fixture Shape | Round |
| LEDs | Backlit LED Technology |
| Housing Material | Stamped aluminum construction |
| Finish | White |
| Lens Material | Polycarbonate |
| Lens Finish | Frosted |
| Trim | Smooth |
| Includes | Bracket Adapter, Screws, and Wire Nuts |
| Size | 4" |
| Socket Adapter | Medium (E26) Adapter (Sold Separately) |
| Equivalent | 65W Incandescent |
| Watts | 12W |
| Lumens | 852 Lumens |
| Efficacy | 62.5 lm/W |
| Color Temp |
3500K (Neutral White) |
| Color Accuracy | 90 CRI |
| CRI R9 |
R9 greater than or equal to 50 (High color performance) |
| Beam Angle | 110° |
| Diameter | 6-1/8" |
| Weight | 0.4 lbs |
| Input Voltage | 120V AC |
| Operating Frequency | 60Hz |
| Driver |
Type:
Constant Current
120V:
114mA
|
| Power Factor | ≥0.9 |
| THD | 50% |
| Operating Temperature |
-22 to 104°F -30 to 40°C |
| Lifespan |
50,000 Hours (Based on IES LM-80 results and TM-21 calculations) |
| Emits No UV Light | Yes |
| Dimmable | Yes - TRIAC/ELV |
| Damp Location Rated | Yes |
| Enclosed Fixture Rated | No |
| Energy Star Approved | Energy Star Version 2.2 Certified |
| UL Listed | Yes |
| UL Classified | Yes |
| IC Rated | Suitable for direct contact with insulation |
| FCC Compliant | Yes (Part 15) |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| California Title 24 | Conforms with California Title 24 Part 6 |
| Warranty | 5 Year Limited |
| UPC | 019813682570 |

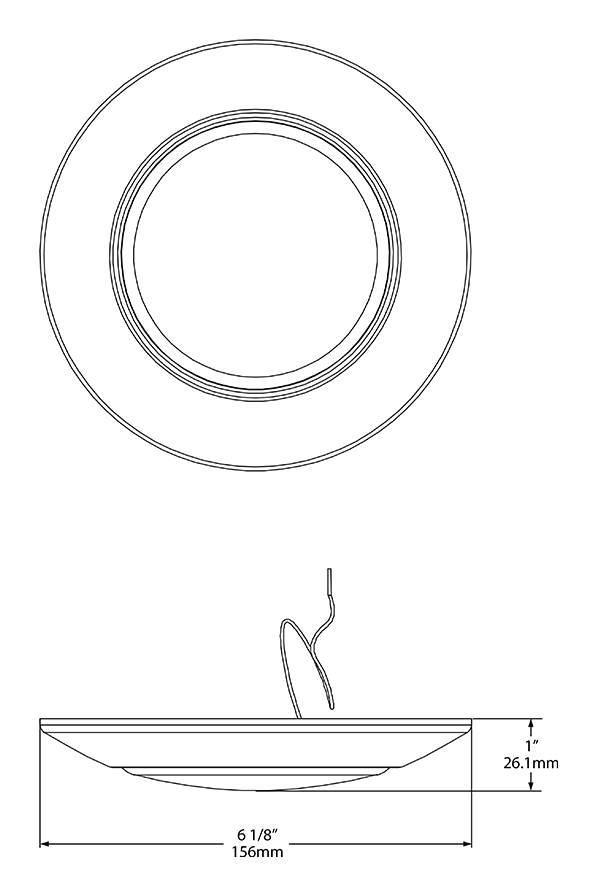

Dimensions
Spec Sheet:
DSK34-4R12935120WS Spec Sheet
Instructions:
Installation Instructions
Compatibility:
Compatibility List
